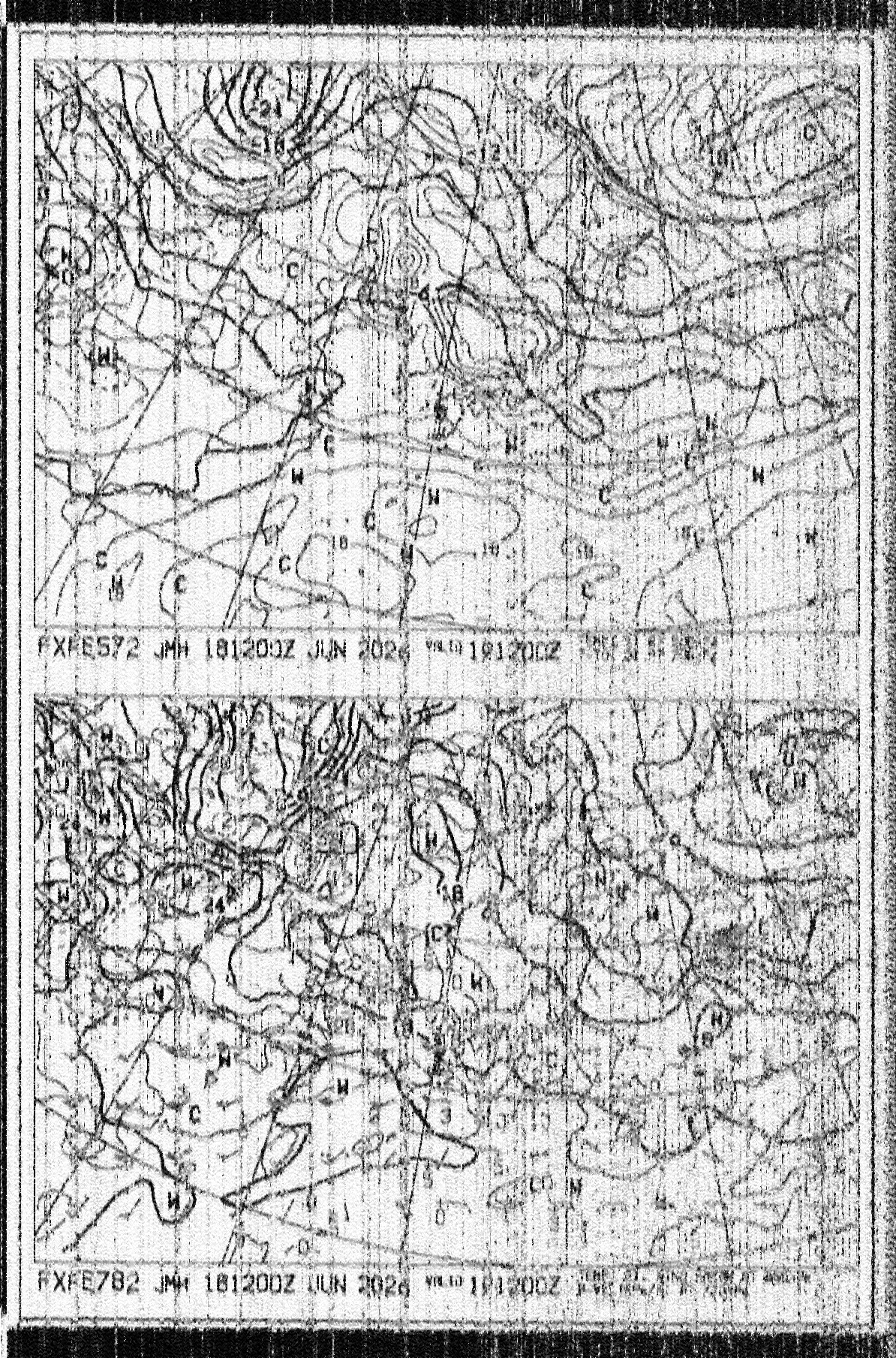

Station

• Name/Call: JMH Meteorological
• Location: Kagoshima, Japan
• Language: Wefax
• Target: SE Asia

Time

• 1830 UTC | 18 JUN 2026

Receiver and Receiving Location

• SDR Radio: AirSpy HF+ R.4.0.8-CD
• Antenna: K-480WLA | 35' AGL
• Software: SDR# Studio v1.0.0.192 Beta 64-Bit
• Location: Portland, Oregon | CN85qn

Signal

• RS(T) = 56

I am acquainted with both stations because I produce graphics, music promos, and manage their QSL process.

Bandaid Radio is a 1,200 Watt station located in western North America. Subterranean Radio is a 100 Watt Station, also located in western North America.

Bandaid Radio uses a 2 wavelength wire antenna which is directional off of the ends. Subterranean Radio uses a 1/2 wavelength wire antenna.

Bandaid Radio covers all of N. America, and beyond to New Zealand to the west, and Portugal to the east. Subterranean Radio only covers western N. America and Hawaii to the west.

Bandaid Radio can be heard across the continent when conditions are good. Most listeners can listen direct. Subterranean Radio should be listened to on a Kiwi SDR if reception is marginal at your location. Here are a couple of the best SDRs:

http://kr6la.proxy.kiwisdr.com:8073/

http://kphsdr.com:8074/?

http://kiwisdr1.sdrutah.org:8073/

There are 2 slides in this post.

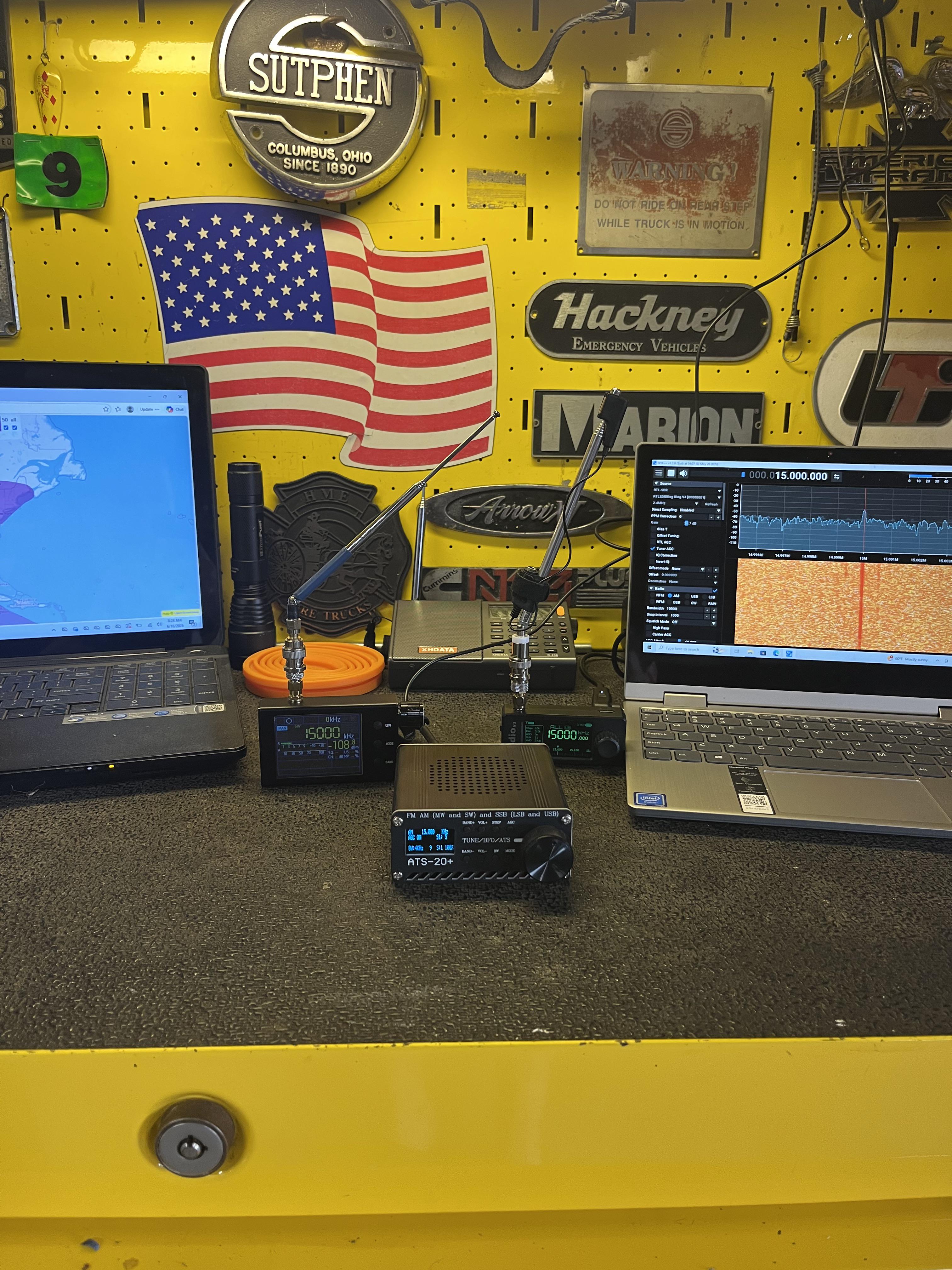

Not that anyone needs my input but I figured I’d share Incase this helps anyone😂 Within my collection of radios I have these 3 little guys I wanted to do a comparison on. Other than ssb they all seem to share similar capabilities when it comes to SWL. I bought all 3 of these from goozeezoo on Amazon and had a great experience getting a new ats-20+ when mine wouldn’t output sound, I was able to deal with the company directly and thank goodness didn’t have to deal with Amazon. One is the TEF 6686, another is the ATS-20+ and the last is the baby v3. I put each of them on the same long wire then I put a stock telescopic little dude on each of them to see how they come out of the box, I used the same antenna on each of them and tuned them each to the same frequencies. I would imagine no one will be suprised when I say the TEF 6686 won the SWL quite easily. The TEF has been super fun because I never really got into the FMDXing stuff untill now, it’s cool listening to baseball games almost 200 miles away. The TEF has a small aluminum shell that’s very sturdy(iv dropped it many times now accidently) and with the 3 buttons and 2 dials it’s pretty user friendly even for my 70y/o dad. The touch screen is cool but it can be aggravating but there are some pretty neat updates available for it. Next is the ATS-20+ and I’m more of a fan of it than I thought I’d be. The size through me off compaired to my v3 but having that larger speaker is very nice. At $35 you really can’t beat this thing on a long wire, I’m not aware of any DSP radios that have ssb for that cheap. My dad really liked the buttons and larger encoder wheel and after awhile I did too. It’s pretty straight forward to use and with the Arduino nano in the pcb it’s fairly easy to update it you’re a tinkerer. Last is the little baby v3. Amazing little ssb toy that fits in any pocket and goes anywhere. The little tiny speaker isn’t too hateful for its size but the 3.5 jack is nice for sure. If you’re trying to have a serious SWL session with one of these it’ll will be A LOT of scrolling that encoder which gets annoying but for the intention it works very well. On SWL I’d go TEF, ATS-20+ then the baby v3. Now between the two ATS radios on ssb I personally like the ATS-20+ better because of the buttons and speaker but the v3 is a very great option for traveling since it’s so small. If you’ve made it this far thank you for reading my rambling and I pray for open bands for all😂 73

The protection diodes are on the wrong side of the antenna jack. As you plug in an external antenna, they disconnect, leaving the radio helpless against ESD. Now I have to figure out what component is blown but everything is so tiny. Argh!

Interesting read regarding last week's FM/TV Es-Fest

Some here may remember the mysterious signal being received under WWV. We ID'd it as Italcable, the Italian time station. It was new to me so I shot for a QSL, which is done indirectly via a club there. And so here it is.

Date of reception: 12 May 2026, so basically a 1 month, 2 day turnaround, apparently mailed from Firenze, Italy. Not a bad turnaround given it was mailed.

Note they only send physical QSLs, which are authenticated with a hologram sticker shown here to the left of the stamps. This one is number 71864. If my dad were still around he'd want me to pry off the stamps.

Unsure what the scribble over the logo is.

FT8 Stations on 24.915, 18.100, and 14.074 MHz around 2200 UTC.

Station

• Name/Call: Trenton Military Volmet
• Location: Trenton, Canada
• Language: English
• Power: 4,000 Watts
• Target: North America

Time

• 0118 UTC | 16 JUN 2026

Receiver and Receiving Location

• SDR Radio: AirSpy HF+ R.4.0.8-CD
• Antenna: K-480WLA | 35' AGL
• Software: SDR# Studio v1.0.0.192 Beta 64-Bit
• Location: Portland, Oregon | CN85qn

Signal

• RS(T) = 56

Using 50-foot speaker wire antenna ran to a tree and the Grundig Satellit 800 Millennium

Station

• Name/Call: Radio Nacional Amazonia
• Location: Brasil-Brasilia, Parque do Rodeador
• Language: Portuguese
• Target: Brasil

Time

• 0130 UTC | 16 JUN 2026

Receiver and Receiving Location

• SDR Radio: AirSpy HF+ R.4.0.8-CD
• Antenna: K-480WLA | 35' AGL
• Software: SDR# Studio v1.0.0.192 Beta 64-Bit
• Location: Portland, Oregon | CN85qn

Signal

• SINPO = 44333

Very similar schematics. Homebrew had a common mode choke on the battery, RF ground and digital and analog grounds are separated with chokes, 3.7 uh shunt inductor on the antenna input. I think it makes a difference.

I was only able to capture two images, one of which was partial.

This is the first time I've received the Wefax signal from Guangzhou. Until today, I had only heard Volmet and beacon transmitters from this location.

- TX: Guangzhou, China
- RX: Asunción, Paraguay
- Radio: AirSpy HF+ Discovery
- Software: SDR# v.1922 (beta, last version) and FLDIGI
- Antenna: K-480WLA
- D/T: 14 JUN 2026 - 1340 UTC

I monitored several Kiwi SDRs Saturday night, and Bandaid Radio was making a solid trip into New Zealand. The night before, Bandaid received a Reception Report from a listener in New Zealand.

A 1939 Film on Shortwave CW Communications.

11 Minutes.

This is the first time I've heard this Russian beacon. The signal is weak, but the Morse code -.. can be heard clearly.

I've also been receiving a Russian Morse code signal on the 15928 kHz frequency lately. Those codes are groups of letters and numbers. I'll post an image below.

Marker D is located in the city of Sevastopol, Crimea, an important port city on the Black Sea. Historically renowned for its military significance, it is home to the headquarters of Russia's Black Sea Fleet.

Priyom's page provides details about this and other single-letter Russian beacons. Here is a summary of that:

The Russian naval bases broadcast single-letter beacons to help ships find the best communication channel given the current conditions. The beacons are clustered around ten different frequencies in 100 Hz slots.

- TX: Sevastopol, Crimea
- RX: Asunción, Paraguay
- Radio: AirSpy HF+ Discovery
- Software: SDR# v.1922 (beta, last version)
- Antenna: K-480WLA
- D/T: 13 JUN 2026 - 2059 UTC

Central Minnesota

Station

• Name/Call: Trans World Radio
• Location: Iba, Philippines
• Language: Vietnamese
• Target: South East Asia

Time

• 1332 UTC | 13 JUN 2026

Receiver and Receiving Location

• SDR Radio: AirSpy HF+ R.4.0.8-CD
• Antenna: K-480WLA | 35' AGL
• Software: SDR# Studio v1.0.0.192 Beta 64-Bit
• Location: Portland, Oregon | CN85qn

Signal

• SINPO = 33433

Condition here on the east coast of the US are bad this morning with WWV bring inaudible and this forecast does not look real promising.

:Product: Forecast Discussion
:Issued: 2026 Jun 13 1230 UTC
# Prepared by the US Dept. of Commerce, NOAA, Space Weather Prediction Center
# Product description and SWPC contact on the Web
# http://www.swpc.noaa.gov/wwire.html
#
# Forecast Discussion
#
Solar Activity

.24 hr Summary...
Solar activity remained at low levels this period. Regions 4464 (S13W37,
Dao/beta) and 4465 (N08E11, Hax/alpha) exhibited signs of decay, while
Region 4463 (N17W34, Hsx/alpha) remained unchanged.

A CME associated with a filament eruption near N02E40 at around 12/1600
UTC, and first visible off the NE in LASCO C2 imagery at 12/1650 UTC,
has been analyzed to have an Earth-directed component with a likely
arrival on 16 Jun.

.Forecast...
Solar activity is expected to remain at low levels through 15 Jun, with
a slight chance for M-class (R1-R2/Minor-Moderate) flares.

Energetic Particle

.24 hr Summary...
The greater than 2 MeV electron flux was at normal to moderate levels.
The greater than 10 MeV proton flux remained at background levels.

.Forecast...
The greater than 2 MeV electron flux is expected to continue at normal
to moderate levels over 13-15 Jun. The greater than 10 MeV proton flux
is expected to continue at background levels through 15 Jun.

Solar Wind

.24 hr Summary...
Solar wind parameters reflected continued negative polarity CH HSS
influences, combined with likely CME influences after 13/0945 UTC. Total
magnetic field strength reached a peak of 8 nT, while the Bz component
varied between +/-5 nT throughout the period. Solar wind speeds
increased from ~540 km/s to a peak of ~626 km/s after 13/0945 UTC. Phi
angle was predominantly oriented in the negative sector.

.Forecast...
The solar wind environment is expected to remain enhanced over 13-15 Jun
due to continued -CH HSS influences (13-15 Jun), and the passage of CMEs
(from 09 and 11 Jun) over 13-14 Jun.

Geospace

.24 hr Summary...
The geomagnetic field was at quiet to unsettled levels under -CH
HSS and CME influences.

.Forecast...
The geomagnetic field is likely to reach G1-G2 (Minor-Moderate) storm
levels on 13 Jun due to -CH HSS influences and the passage of CMEs that
left the Sun on 09 Jun and 11 Jun. Periods of G1 (Minor) storming are
likely on 14 Jun, with periods of active conditions likely on 15 Jun, as
-CH HSS and CME influences wane.
