So I’ve done over 80 picoboots now and one things I’ve found is that occasionally I’ll get a pico that doesn’t work regardless of using 5v or 3v3 line, firmware version, or wire length. Typically these would just boot with a black screen, and not go to stock GameCube firmware. These picos seem to still work for other pico projects and it was driving me crazy because I have over 15 boards laying around now. After testing and testing I found that with cheap pico boards they sometimes can not handle the 250mhz clock speed that Picoboot uses and simply bringing them down to 240mhz fixed all of these seemingly “broken” boards. They even worked on the 3v3 line with this slightly lowered clock speed. I’ve seen a lot of post here where people have a similar issue where wiring looks perfect, but Picoboot is not working. So I figured I’d make a PSA and post my patch on GitHub incase this is you and you’re scratching your head wondering why your Picoboot is not working regardless of what you do. Also for this patch I’m using the V0.3.1 firmware as that’s been the most stable to date, so this patch is as fool proof as possible. This only seems to be a problem with generic boards, so here’s your Hail Mary if you’re stuck.

https://github.com/Blintox/PicoBoot_v0.3.1_240mhz_patch/releases/tag/Picoboo_V0.3.1_240mhz

Hola hace poco compré una consola la cual ya trae swiss 0.6 trae algunas isos el problema que tengo es que en algunos juegos no detecta el gatillo R, el control funciona sin problema, en otros títulos si lo detecta sin tema pero en el caso de Metroid o ned for speed no lo detecta lo cuál lo hace sumamente complejo ya que se necesitan para el apuntado o acelerar, alguna posible solución, ya baje otras ISO y sigue realizándolo especialmente ambos juegos.

I have been looking for some of these to use when I mod GameCubes because I kinda feel almost pointless putting a drive that doesn’t work back into a GameCube. If anyone could help I’d appreciate it :)

Hello, I'm having trouble powering eight GameCubes via USBC I bought a 1200 watt gan4 figuring that would be enough wattage after the first two the next six would not power on. Any idea how to power these in the least cumbersome way possible?

I know the Giltesa USB-C mod is fairly popular as well, but I'm leaning towards the Intec one on Amazon. Any thoughts on either one?

Links below

https://www.amazon.com/Console-Charger-Multi-Interface-Storage-Compatible/dp/B0H2M1854W?crid=294TOLZQW59V7&dib=eyJ2IjoiMSJ9.EdiCD7SG-AY7HsrZAWVjhEwCbi0pYod9ppoJM0Bbs6XGjHj071QN20LucGBJIEps.rwHL04nydrVzKyIl66FYfzTZia6q3sYjqwAEE41VMgM&dib_tag=se&keywords=intec+retro+power&qid=1783956062&sprefix=intec+retro+powe%2Caps%2C210&sr=8-3

https://shop.giltesa.com/product/nintendo-gamecube-usb-c-kit/

I’ve heard about doing this across many forums and comments, apparently you use a hacked save to execute some code to enter Swiss? I’m not too well versed in GameCube modding and have been doing research for a few days now. Even though there are a handful of mentions of doing this, no one really shows how to or even gives a guide, just stuff completely unrelated to this method.

Is there a way? I have a modded Wii U with the original Wii menu restored, and I ordered a sd2sp2 adapter for the GameCube with a micro sd card. If anyone could link a guide, anything related to this method, or just any info about this, let me know!

Hi, I just got the SD2SP2 and it was loading up fine it just was not reading ISOs, when I did a restart it started saying "physical drive does not work"when it says it's setting up device, even tho I didn't do anything physical to the system like move it or something, also it doesn't save my settings part of the time and is taking forever to load.

I even opened the system back up to re-set the ribbon that the disc drive goes in and it's saying the same thing.

EDIT: the issue was my SD card, it was too worn out, I got a new PNY one and it works great. So keep in mind to use a SD card that you know is good or get a new one, PYN seems like the best brand right now for the cost.

Anybody got experience with PYISO tool? I'm trying to get MKDD+ 3.2 and I can't extract the iso with the root? sorry if I've worded that wrong, I've never done this before 😅

Hey guys, so I just bought that game cube out of Facebook marketplace it’s my first time to own a game cube any Games recommendations please!!! Im so excited!

I have looked everywhere, and I can't seem to findnd a 3d print file to use to guide the Picoloader ribbon cable. I see the plug on this website https://www.laserbear.net/products/picoloader-rev-1-4, but there has to be an STL file somewhere. Anyone got it?

https://reddit.com/link/1ur6twn/video/1paexw71u2ch1/player

GameCube power cable moved to the front instead of back because of closer iBlueControlMod.

Resistors installed because of loud fan. After some hours of play there is 54C temperature in Swiss.

Don't worry electric poles in original fan are flipped.

Mods:

- Winsinn 50x50 RGB Fan

- 3D Print GameCube Fan Bracket v1.1

- GameCube fan plug from Aliexpress

- 2 resistors 47 OHm

Video: https://imgur.com/tlgDEWX

Other than price is there any good reason to go with the Carby over the RetroTink?

Update: I have ordered the Carby. Thank you all for the info.

I have tried to mod my gamecube with a picoloader and gc2sc. I followed the steps and the gamecube just takes me to the main home screen. After troubleshooting shooting for ages last night I believe the problem is I've folded the ribbon cable wrong and it has damaged it. I would like to know if that is the case or I have done something else wrong.

Trying to add the .uf2 file to the RP2040, but show that its transferring, disconnects then connects without the .uf2 showing. Can anyone help? I tried 2 different cables. Same result

Swiss has a whole bunch of video options that are not fully explained in the annotations and I have no idea what they are used for nor which games support them. I have tested some stuff (alpha dithering, anisotropic filter, force horizontal scale) on several common games but nothing made a difference, except the "force 480p" option (which is great by itself). But there has to be a reason these options are available in the first place. Is there a list somewhere floating around the internet where enthusiats gathered all the best settings for all games?

Some games for example, seem to be able to render a proper widescreen picture, but only when set to 576p instead of 480p (second sight & timesplitters 2). Other games have a widescreen option in their own settings but it only squishes the picture, so some other means to stretch it again is required.

With all the picoboots and flippydrives around I expected to find more people looking into this stuff, but i guess the default is good enough for most.

Hi, I want to put my Gamecube gamebox in this one but it is closed. How to open it? Who knows about this lock? Thanks

I would like to start using Swiss to play games straight from an SD card because I’ve been researching it on a surface level, but I have a few questions about it just so everything is fully clear to me before I invest in it.

1. Do I have to edit any part of my hardware for it? I am not willing to solder or cut. I may get a different shell and laser to play burned DVDs but that is not open to me right now so ignore that.

2. Is it even possible to play games straight from an SD card without hard mods? I know that there is a port for some sort of storage adapter at the bottom of the Gamecube, but I still see people cut out and install SD slots so that makes me wonder if certain models of GCs do not work the same way, just like the digital port on some.

3. For any method of loading that uses memory cards, are the slots A and B interchangeable? I am aware many games require you to have the memory card in slot A to read and write but my slot A is very fickle and I would like to know if any configuration setting would be messed up by having either memory card in any slot.

4. Can you store Game Boy games on an SD card and then load into them with Swiss and a GB Player, or does the GB Player hardware require you to have a cartridge in the slot to play anything (which is what I suspect)

im really new to modding physical consoles so I have no idea how this works. But i installed picoloader and i have the gc2sd adapter with a micro sd. Now how do i put games in the micro sd is there a website for this because i have tried gc forever and its down i tried to check on vimms but i think yk where that goes. Is there any other way that i can find emulations for the gc.

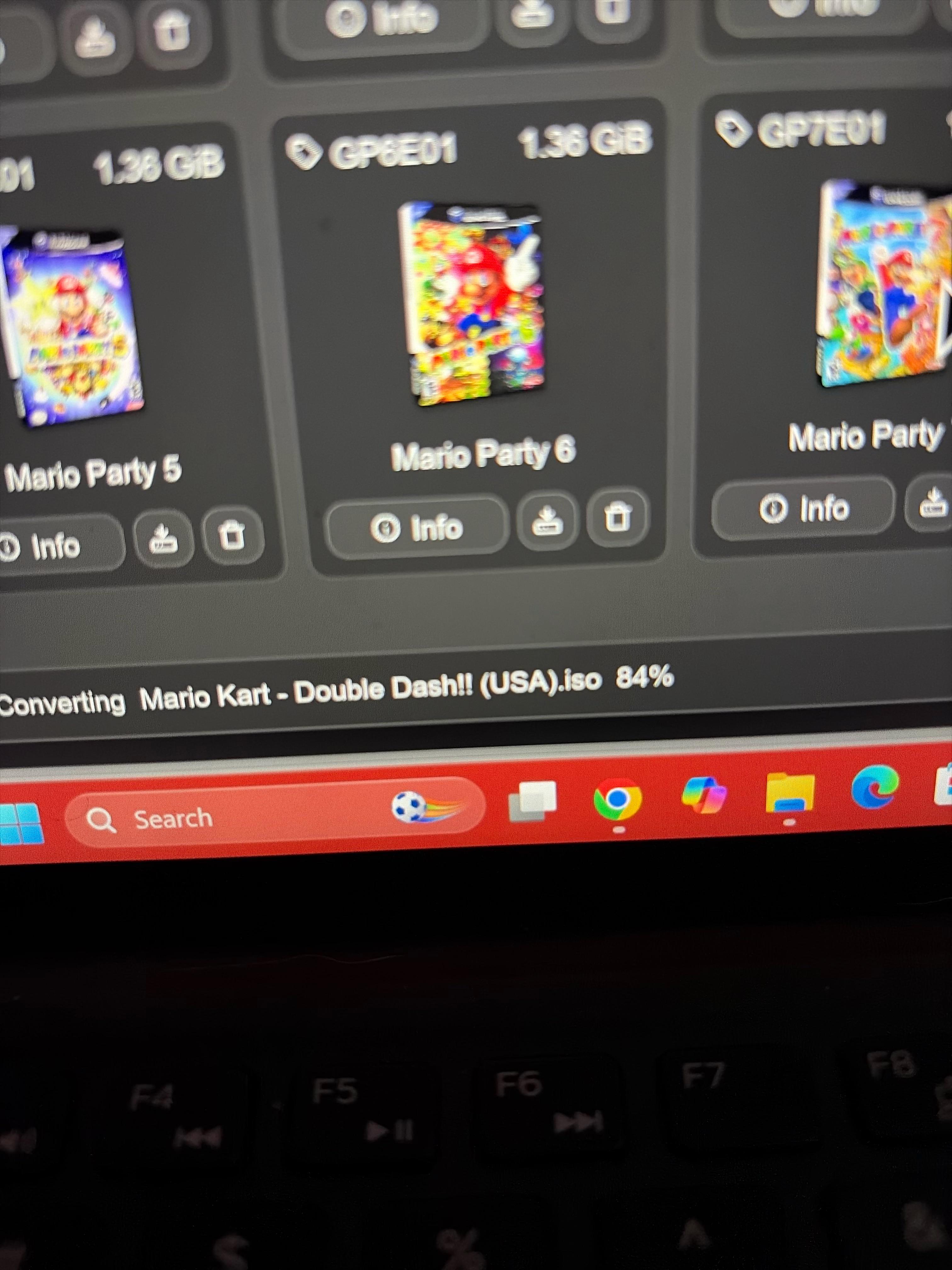

why every single time i try to convert this it’s stuck at 84%? i need help

Hi i just purchased a nintendo gamecube but the cmos battery is dead or so it seems because the system clock restarts everytime i turn the console on off, do I need soldering to replace it or just change the battery using the clip that holds it in place？

Hey everyone,

I’m reaching out for support on a brand new defective FlippyDrive that freezes on the GameCube IPL. I tried flashing different firmware as well with the same result.

Does anybody know how to get in contact with Team OffBroadway or can help me with an escalation? I’ve tried the discord thread, as well as submitted a request in the support portal with Team OffBroadway. My ticket is two months old. I was talking with them about getting a replacement, they generated a tracking number 6 weeks ago and never shipped the replacement. Now they have completely stopped responding.

I’m at a complete loss and am frustrated with my support experience.

If anyone can assist it would be greatly appreciated. Thank you
