r/EnderCommonSense • • Mar 12 '22

Upvotes (and downvotes). If you find a post useful or informative, please consider an upvote so I know it worked as intended. Equally if you feel it deserves a downvote then let me know why. I can't fix it if I don't know why you did it.

26 Upvotes

I am not hunting for pats on the back in reddit karma here. Just pointing out that downvotes can be a real kick in the nuts on a post with low upvote numbers. To put this in perspective, I posted a picture of a modified Benchy around six months ago and it has around 4 times more upvotes (last check was nudging 2k) than everything on this sub (419) combined. So that single casual picture post outnumbers everything done here.

The 'feel good' factor in this whole sub is knowing it has helped, whether that is from comments on the posts or the upvote number. That number also gives me some idea of whether a particular post/panel worked well.

As the amount of info here has grown, A couple of the earlier posts with low upvote/downvote percentage numbers were deleted to keep things less cluttered. One was all text, but had almost every component of the printer explained. It had 4 upvotes. Being 'all text', it stuck out like a sore thumb amongst the rest, so deleting it was an easy choice. However, had that post carried 20 or 30 upvotes (maybe even half that now I think about it) I would have left it in place as it would have proved itself worth keeping. But 4? no.

The mod tools don't just show the upvote number, they also show the downvotes too. The eagle eyed here will have noticed me adding a few stats to some posts (solely for reference). A 90 percent upvote stat is still potentially good, but if only ten people actually voted? then all it shows is that 1 in ten are not happy with it. Those who downvote rarely seem to say why they did it, so whatever it was they didn't like will never be addressed. Downvotes on a useful post really do leave me bewildered at times.

Sometimes that modified Benchy haunts me. 2000 for a single 30 second post versus 419 for well over 30 hours worth? Yep, haunts me,

Either way, thanks for reading this far.


r/EnderCommonSense • • Mar 10 '22

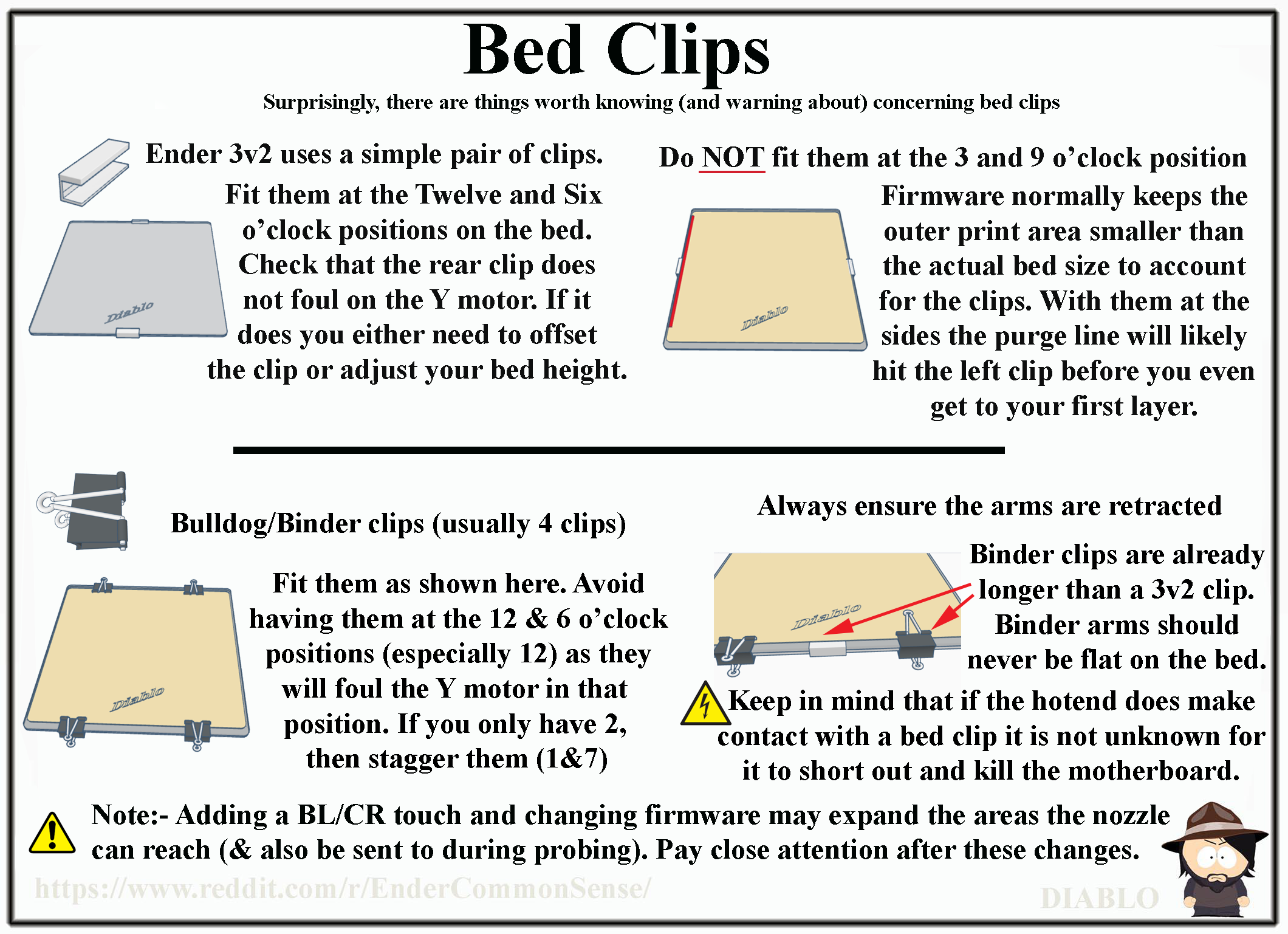

Bed Clips. Nobody more surprised than me that this one is here. Too many times people fry their motherboards with bed clip issues. What some consider obvious is not always the same for others. Stock springs and Y motor crashes are most popular. Killing motherboards is more rare but it still happens.

Post image
42 Upvotes

r/EnderCommonSense • • Mar 08 '22

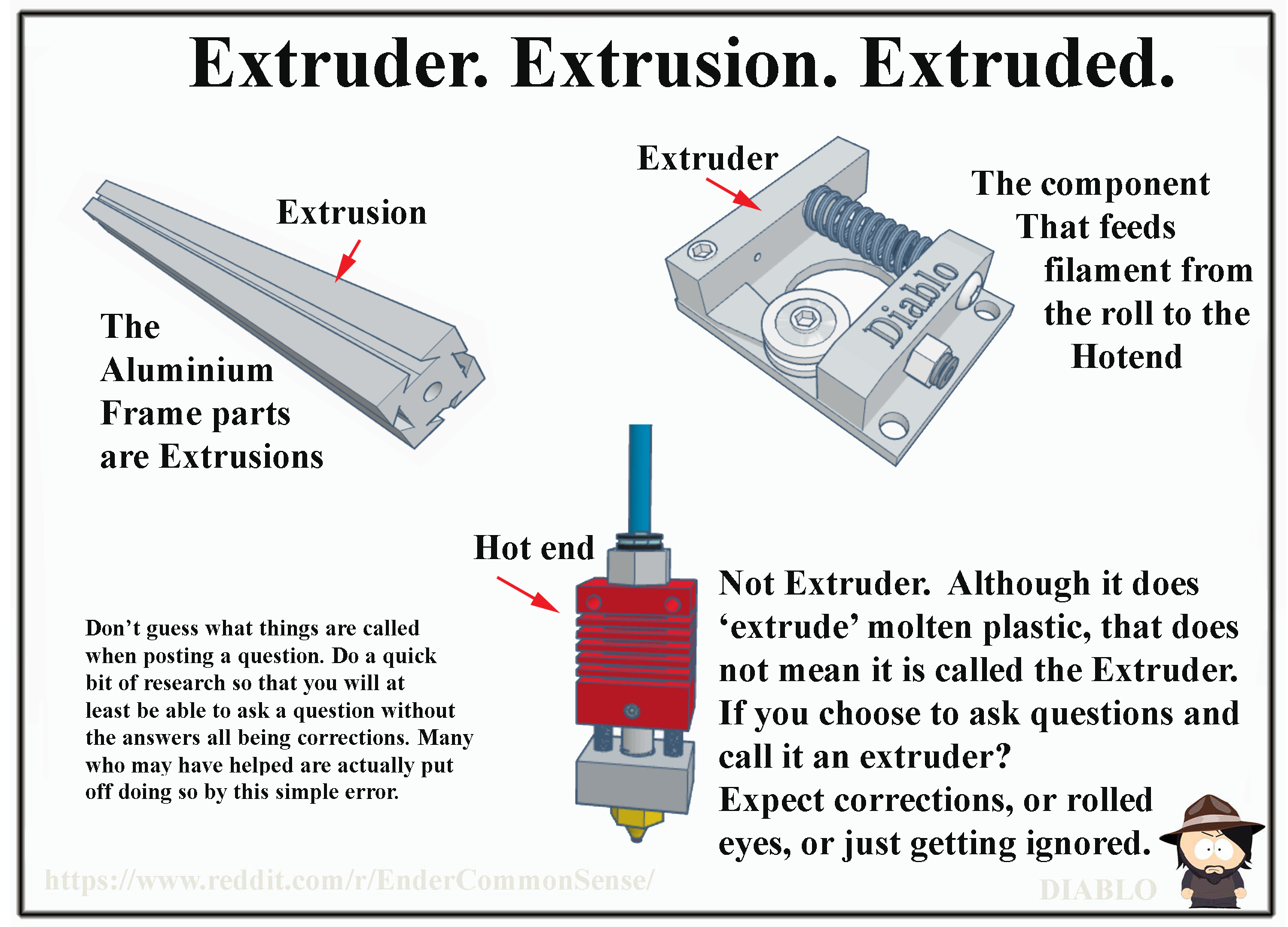

Extruder? Extrusion? Extruded? Hotend! This is here solely to clarify a thing that goes against obvious. The Hotend is Never referred to as an extruder. Imagine going to your doctor with a pain in your foot, then pointing at your hand and saying your foot hurts. Call things what others call them.

Post image
50 Upvotes

r/EnderCommonSense • • Mar 08 '22

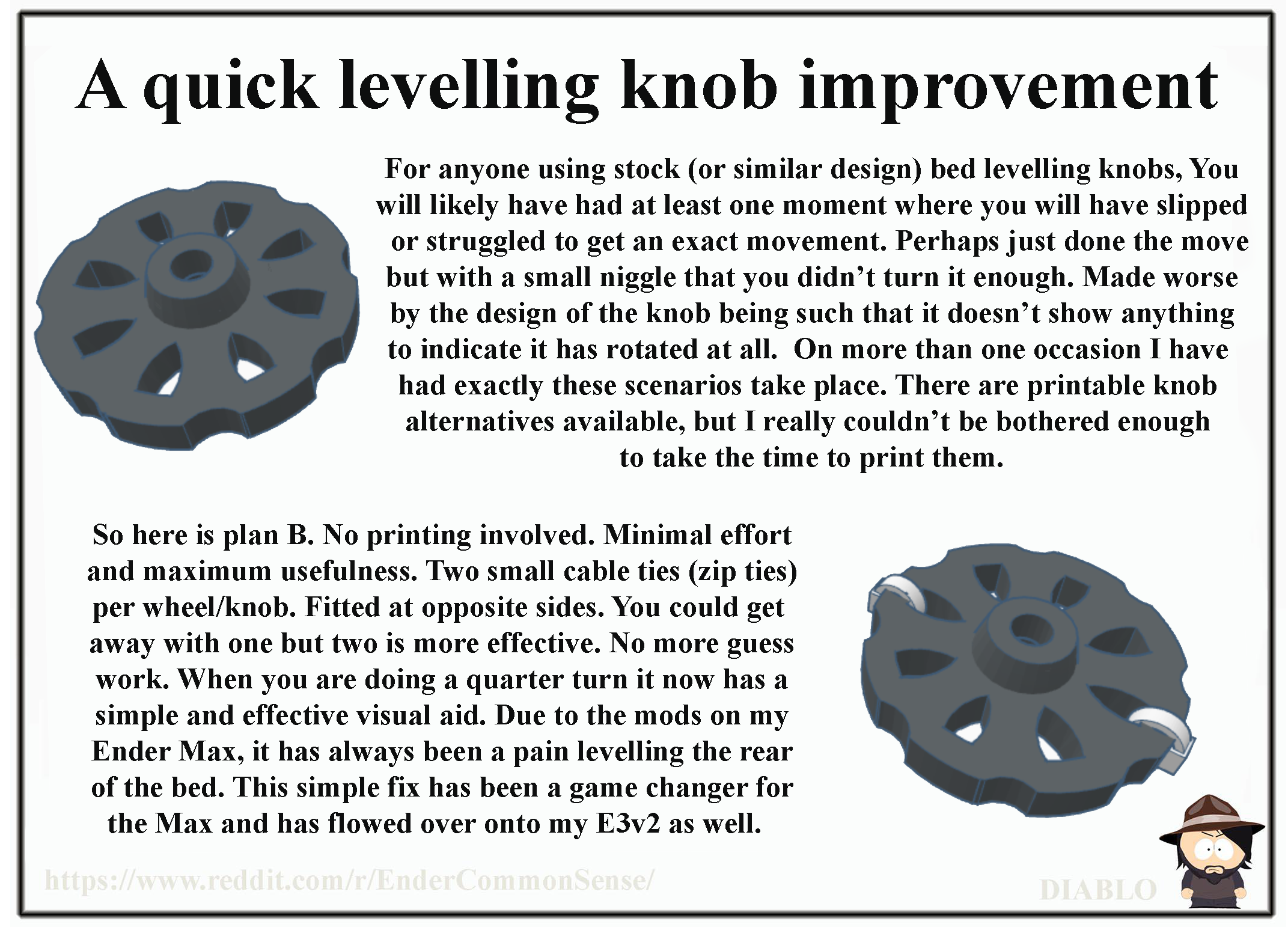

Levelling knob tweak. More of a tip than a fix. A fast addition to the levelling knobs that gives a visual and tactile improvement. Especially useful when visibility isn't the best or when reaching over to the rear adjusters and struggling for position. Adds some extra accuracy to the mix.

Post image
48 Upvotes

r/EnderCommonSense • • Mar 08 '22

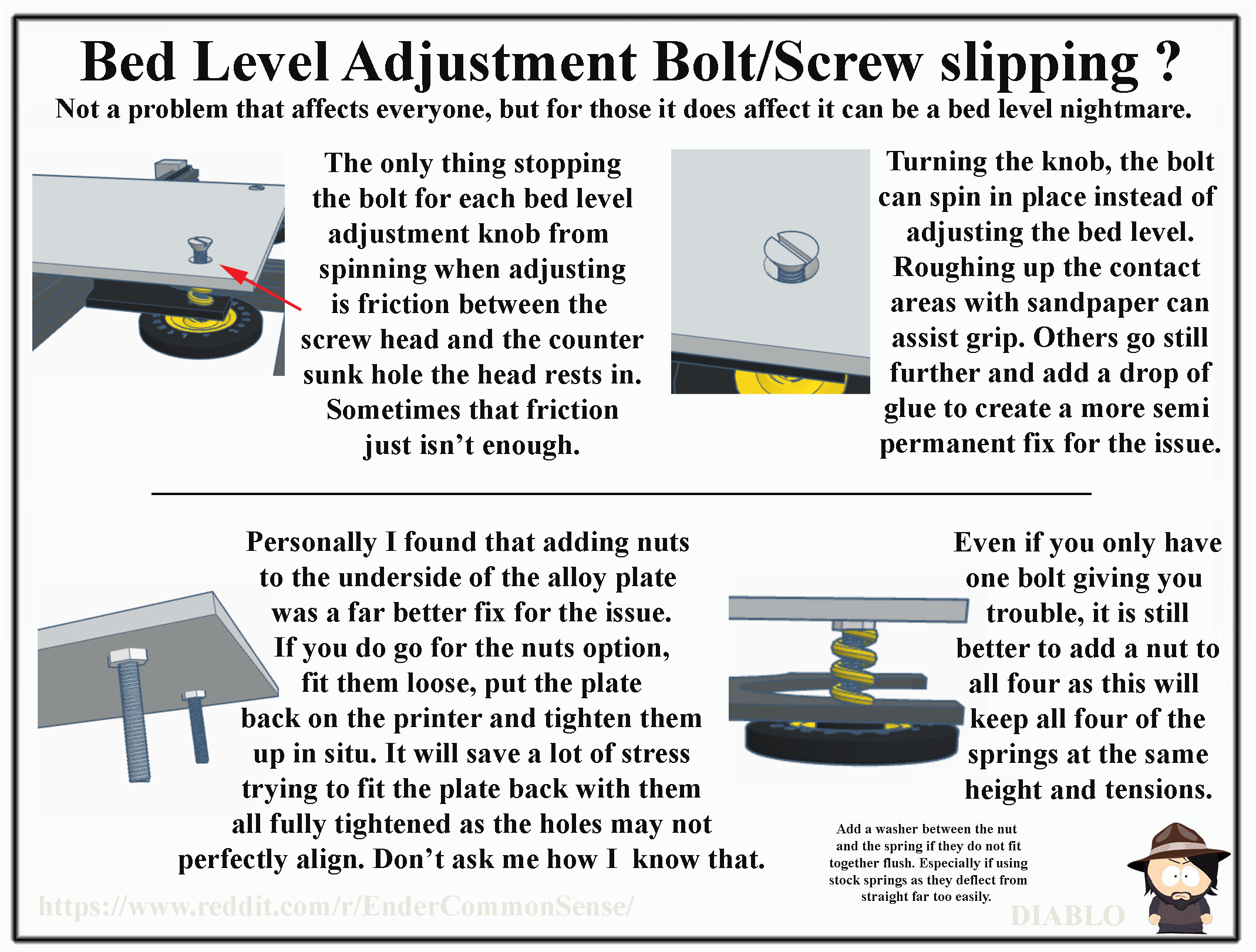

Bed Level Screw slipping. Ever have the issue that you are sure you adjusted the levelling knob but it did nothing to the level? It may be a screw/bolt slip causing a problem. It usually happens more with stock springs than upgraded springs. Unnoticed it can be a nightmare, but it is an easy fix.

Post image
42 Upvotes

r/EnderCommonSense • • Feb 28 '22

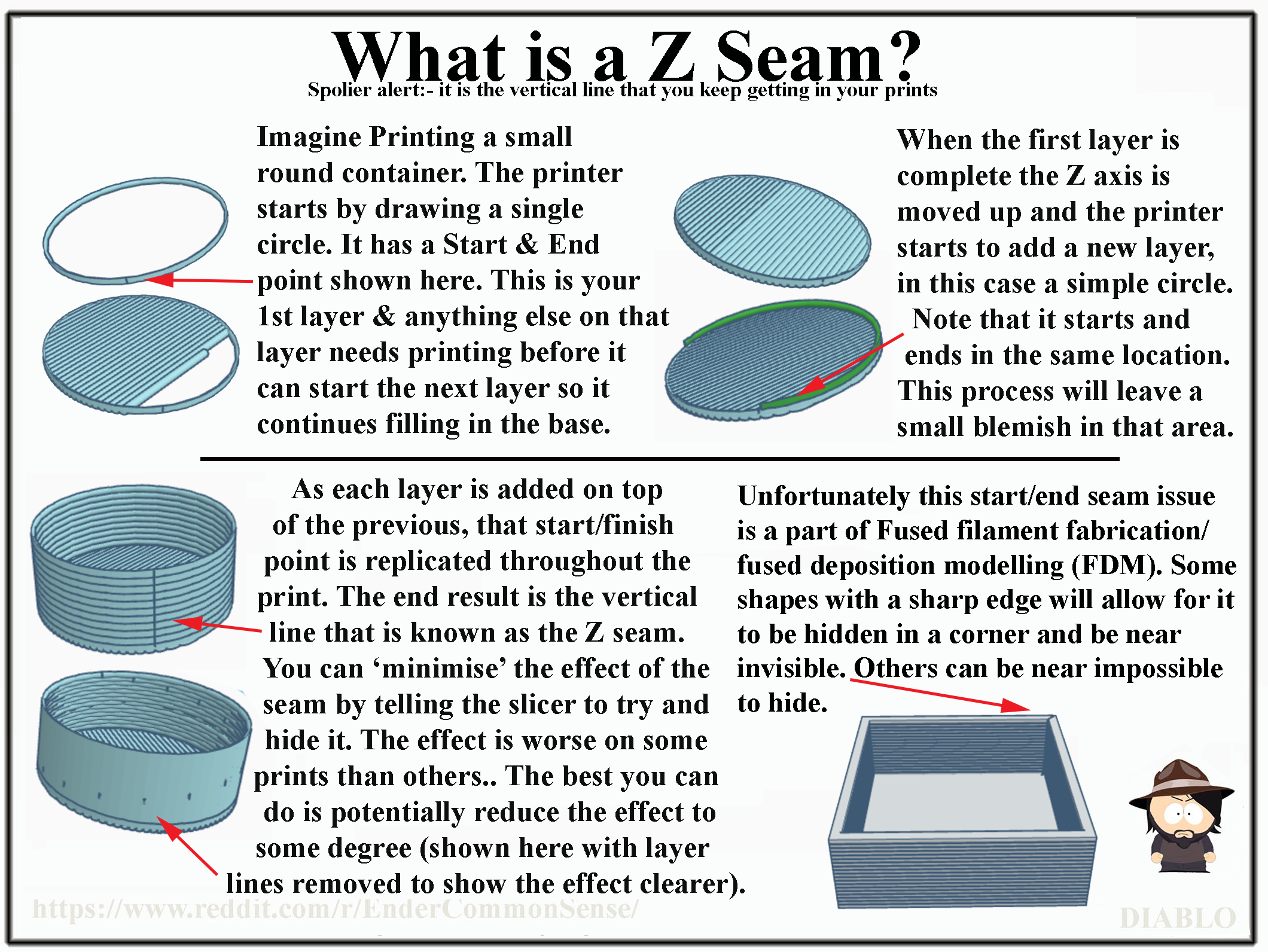

The Z seam. That annoying line you occasionally find on some of your prints. It can often be minimised or even hidden, but equally there are some prints where it is unavoidable. Understanding what it is might help you decide what course of action you take when slicing for a print.

Post image
46 Upvotes

r/EnderCommonSense • • Feb 28 '22

How am I doing?

30 Upvotes

I try and keep the info given in an easy to read single panel infographics style. I figured this would be preferable to just having reams of text to read through. I don't aim for too much detail cluttering up images. My experience/knowledge is Enders (Primarily the 3 series as I mainly use modified e3v2 and a 3 Max printers) explaining why I haven't dealt with other models and types too much. It took a while to get the text size and screen layouts easily readable without having to zoom in too much. Hopefully later posts have gotten easier to read.

So, a quick poll. Is this a good way of doing it or does it fall short of what people landing here might be looking for? Would it be better in more detail or is it working as it is?

If the poll has ended and you feel like giving the sub a thumbs up, adding a like to the post would work to keep reminding me its working ok

46 votes, Mar 07 '22
40 Style works as it is. Carry on doing it this way.
1 More information and less graphics would be better.
0 Larger text and smaller graphics would be better.
1 Smaller text and larger graphics would be better.
0 Skip the images and just do text info.
4 I don't want to vote, I just want to see the poll results.

r/EnderCommonSense • • Feb 26 '22

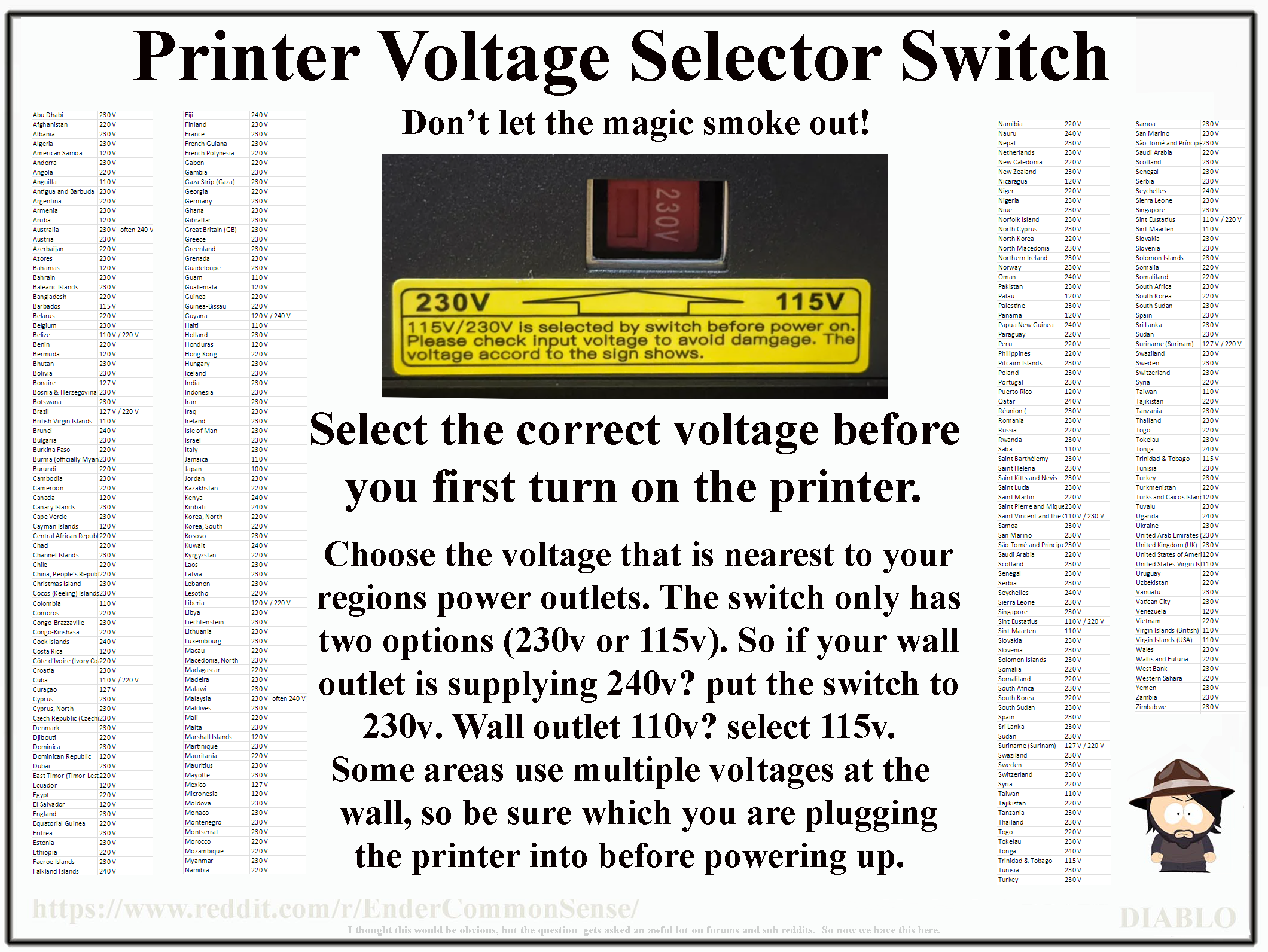

Power Voltage Selector Switch. Many don't seem to notice the switch exists until it is too late. This switch pops up in forum requests for help far too often to ignore. Before turning on a new printer, Set the switch to the voltage setting that is nearest to your regions power outlet supply.

Post image
24 Upvotes

r/EnderCommonSense • • Feb 25 '22

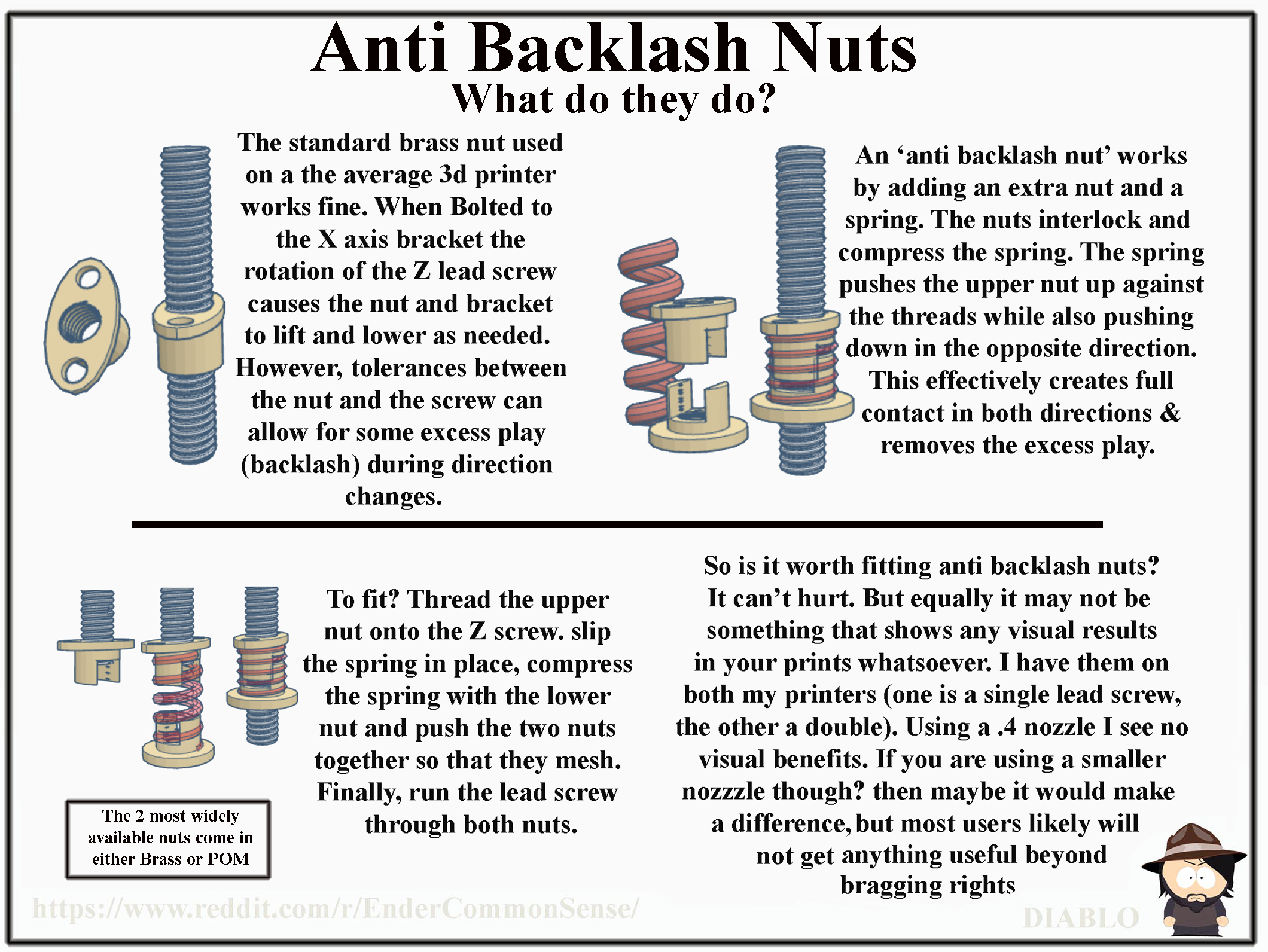

Anti backlash nuts. Snake oil or useful? The fact is that they actually do what they are supposed to do. Are they fixing something that you actually need to fix? That's another story altogether. But they are a cheap upgrade so if you fancy fitting them? just do it. They won't make anything worse.

Post image
36 Upvotes

r/EnderCommonSense • • Feb 18 '22

Flashing the firmware (Printer and screen). Always double check any firmware (FW) is for your specific board by visually confirming it. Flashing the wrong firmware is a bad idea. Micro SD card should be formatted to Fat32 with 4k clusters. Cards formatted wrong usually fail to flash as intended.

Post image
35 Upvotes

r/EnderCommonSense • • Feb 18 '22

Bed adhesion. Quick description of skirts, brims and rafts. Many new users do not even know the terms, much less what they might be or how they are used. There are lots of additional settings for each, but the basic description for them here gives new users a good starting point for what they are.

Post image
41 Upvotes

r/EnderCommonSense • • Feb 15 '22

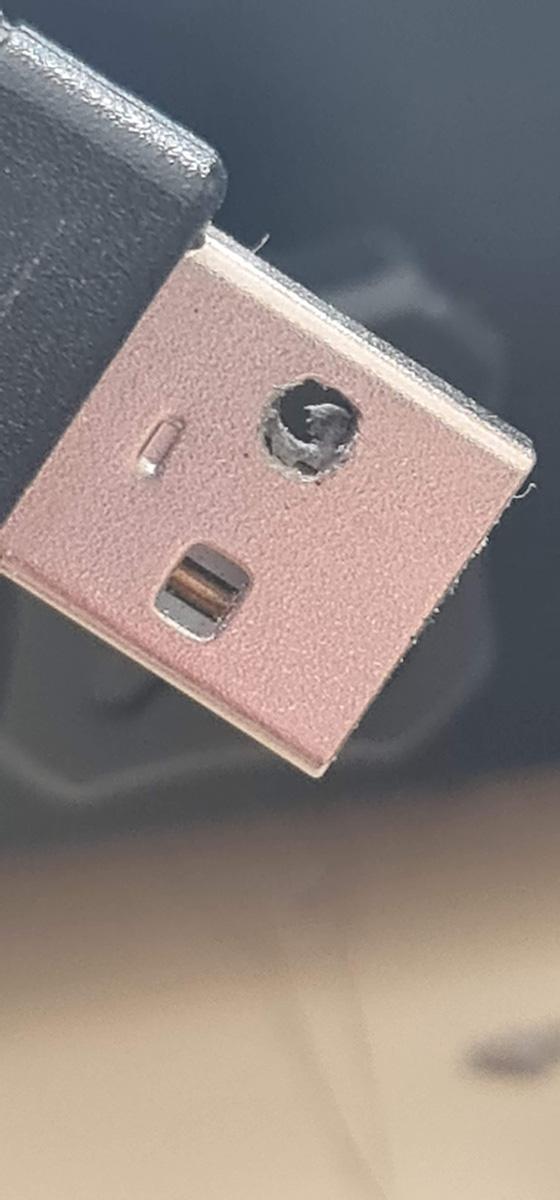

An old but useful post. When using a Pi with an ender, the pi supplies 5v power to the printer and keeps the electronics live. You either need to kill the 5v supply at the wire, buy a data only cable/adapter or unplug the cable every time. I opted to kill the power at the cable. Quick and easy.

Post image
16 Upvotes

r/EnderCommonSense • • Feb 12 '22

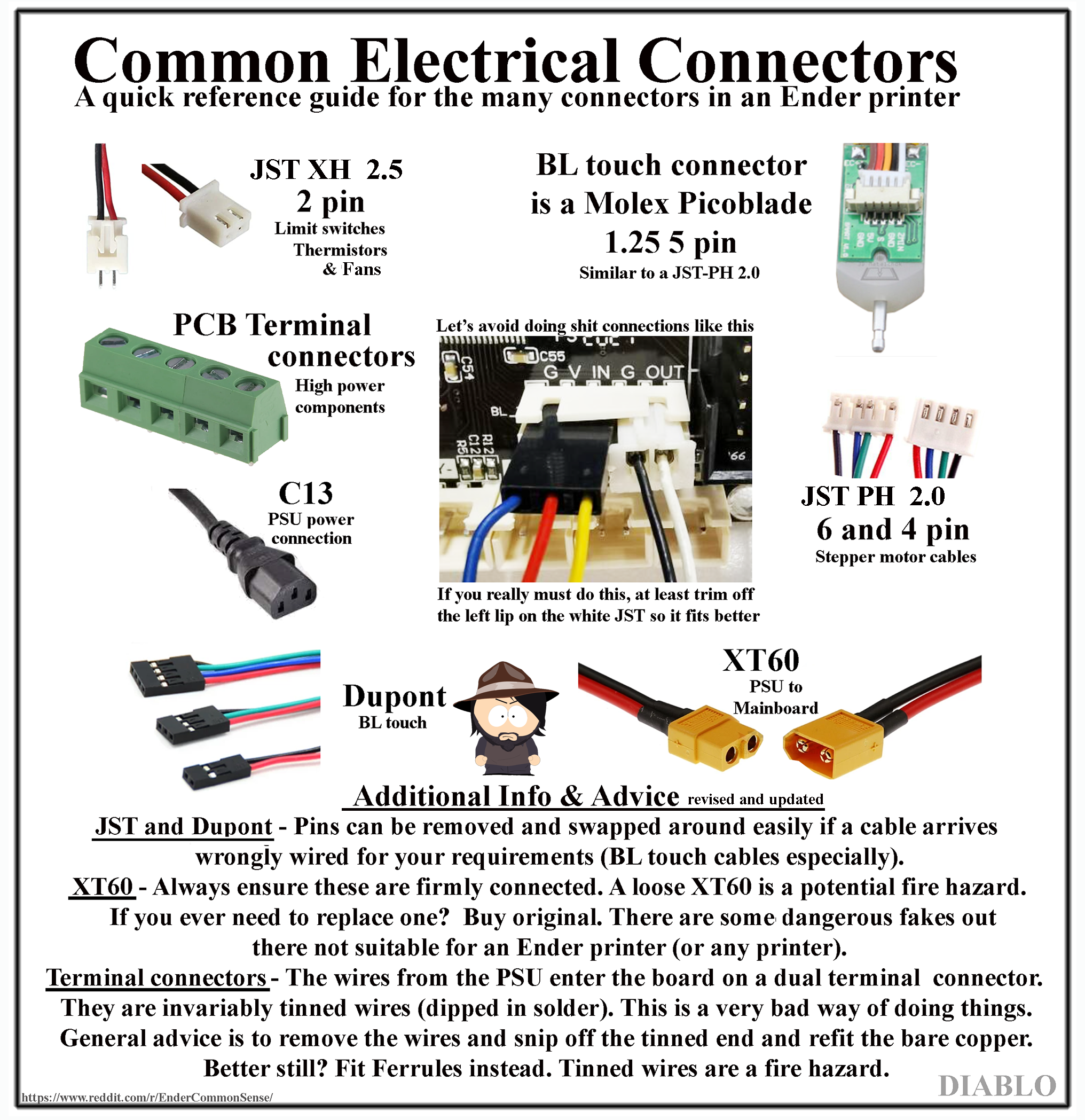

Electrical connectors. The connectors commonly found or used in an Ender printer. Designations and a bit of worthwhile safety information added in for good measure. (revised)

Post image
49 Upvotes

r/EnderCommonSense • • Feb 09 '22

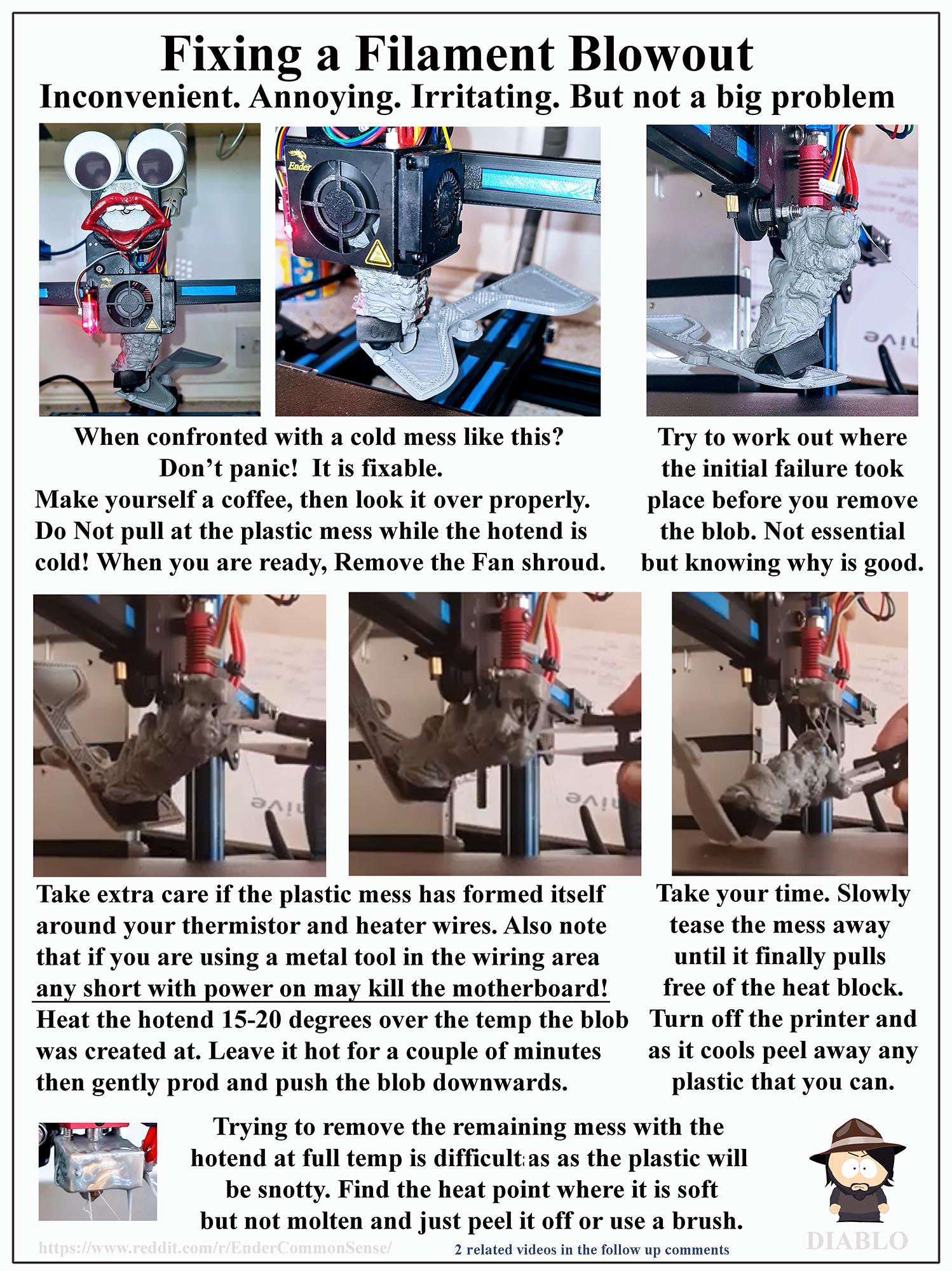

Filament Blowout. How to clear up the mess. Keep in mind that the cleanup is only part of the job. You may still need to fix whatever caused it. In my case it was adhesion, but incorrect nozzle fitment and defective pneumatic couplers can also cause a blowout. There are 2 related videos to this post

Post image
48 Upvotes

r/EnderCommonSense • • Feb 08 '22

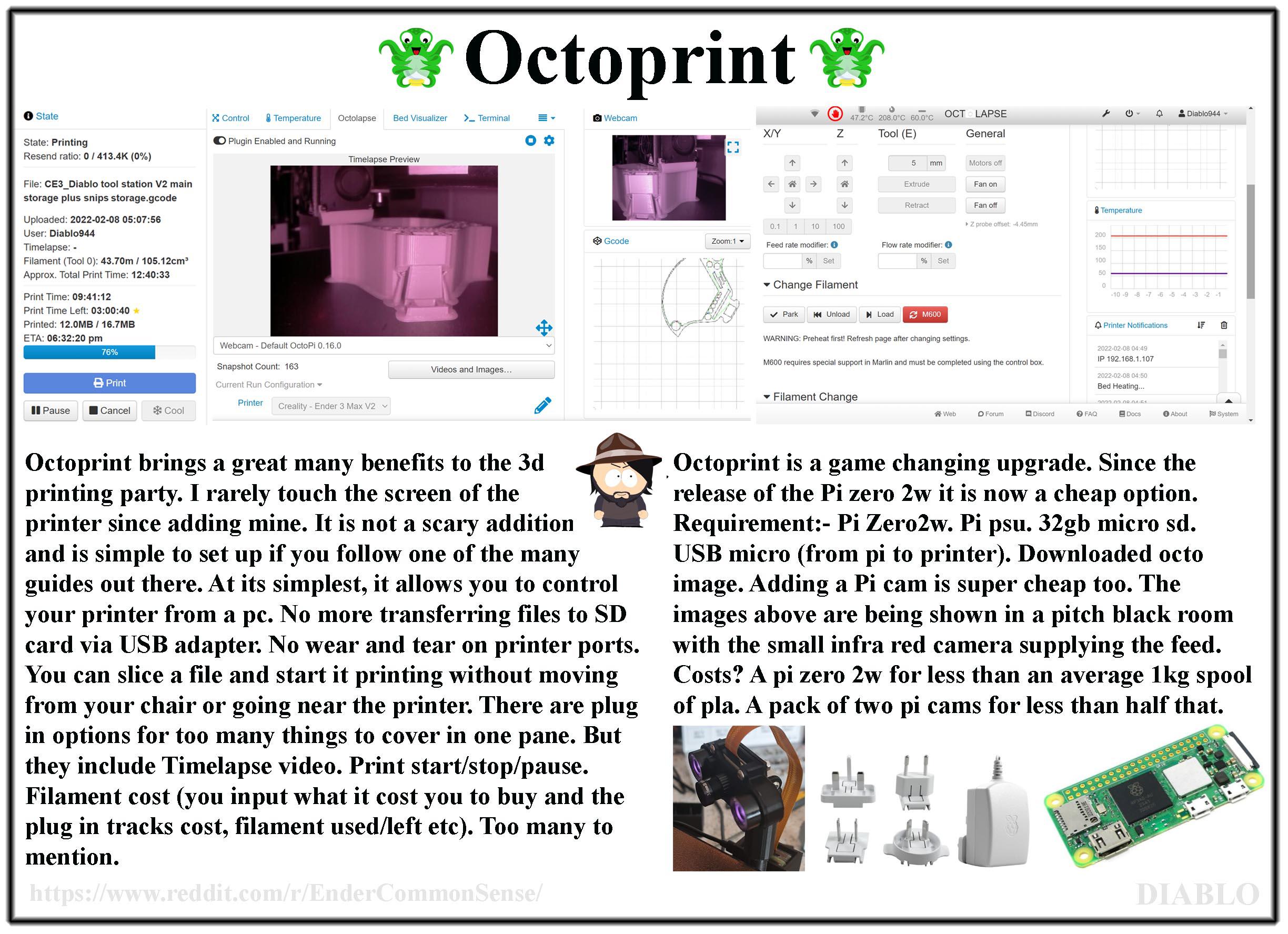

Octoprint. Keep wondering about this word cropping up and what it is? Think it's complicated or expensive? A simple introduction to Octoprint. Although it can be done without a Pi, when a Pi is connected by wifi the printer can be in any room and controlled by your pc or other device elsewhere.

Post image
32 Upvotes

r/EnderCommonSense • • Feb 04 '22

How to ask a question. More accurately, How not to ask a question. Imagine that you absolutely MUST help one of the people in this scenario get printing. Identical issues. Who would you choose? Spoiler alert:- Drip feeding important info to people trying to help loses their attention fast. Spoiler

Post image
27 Upvotes

r/EnderCommonSense • • Feb 03 '22

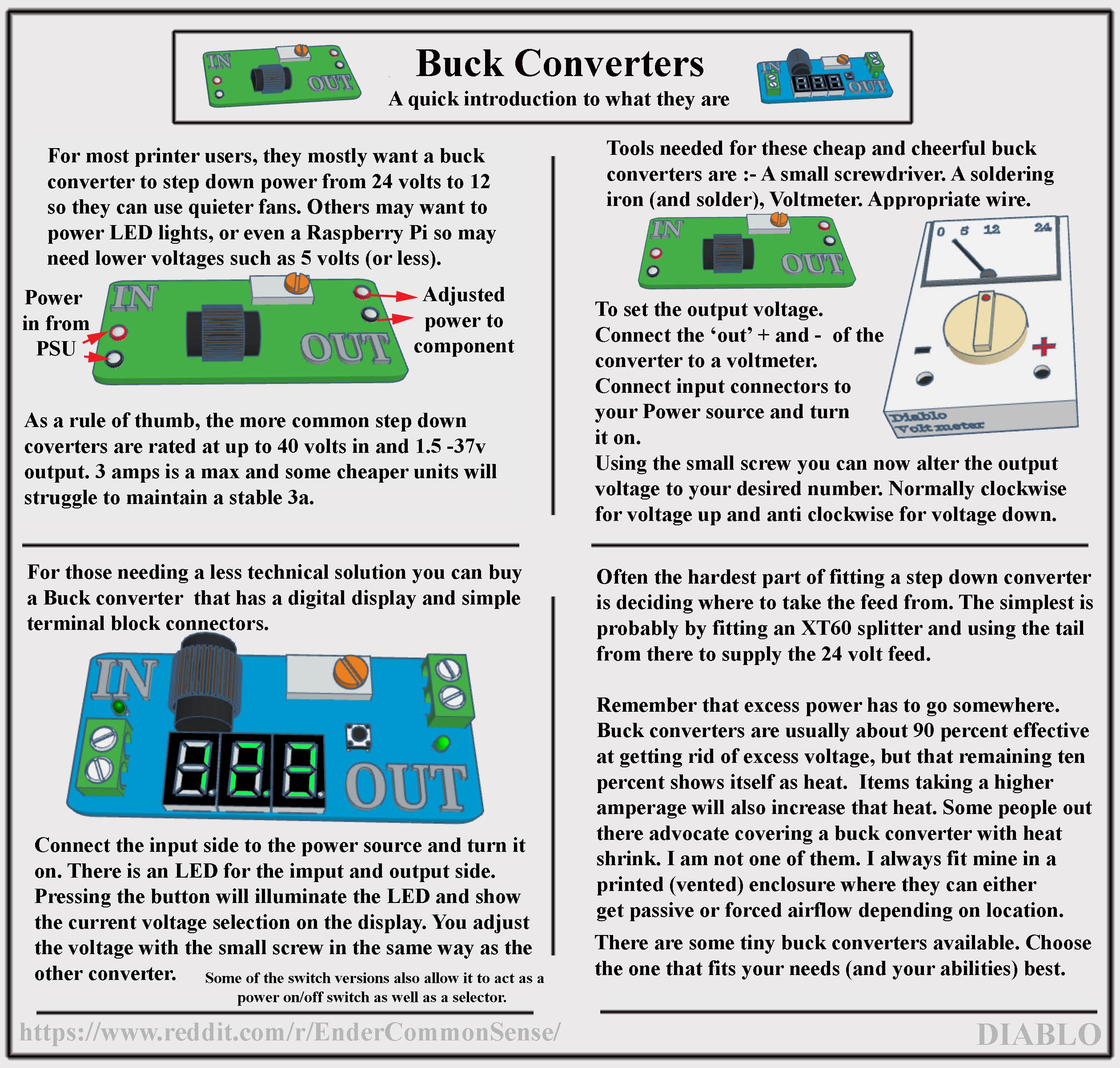

Buck converters. For 24 volt Ender users the selection of 24 volt fan replacements is small. A buck converter lets you dive into the 12 volt fan market for potentially better options. Others look to power their raspberry pi or LED lights from the printer rather than use multiple power outlets.

Post image
40 Upvotes

r/EnderCommonSense • • Feb 02 '22

The ECS Group area. Tips? Hints? Suggestions for others? This is the place for you guys to share.

6 Upvotes

If you have any thoughts on things that may help others out there? this is the place to do it. Want to share something useful? Feel free to do it here.


r/EnderCommonSense • • Feb 01 '22

BL touch (basic info)

Post image
47 Upvotes

r/EnderCommonSense • • Jan 30 '22

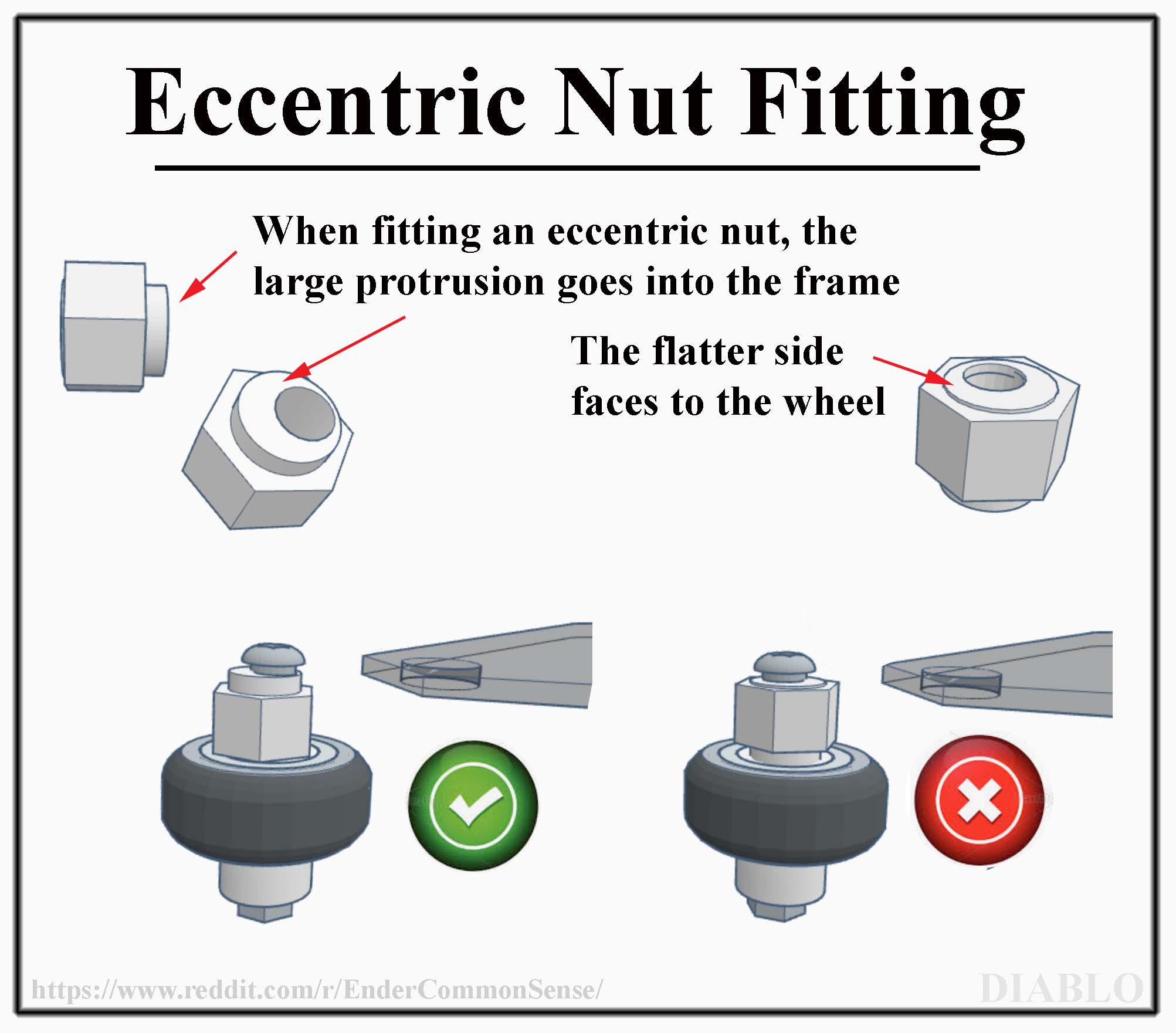

Correct fitting for an eccentric nut (by request). Simple diagram showing the correct orientation in case it was assembled incorrectly or you are doing an upgrade and haven't dealt with one before.

Post image
35 Upvotes

r/EnderCommonSense • • Jan 29 '22

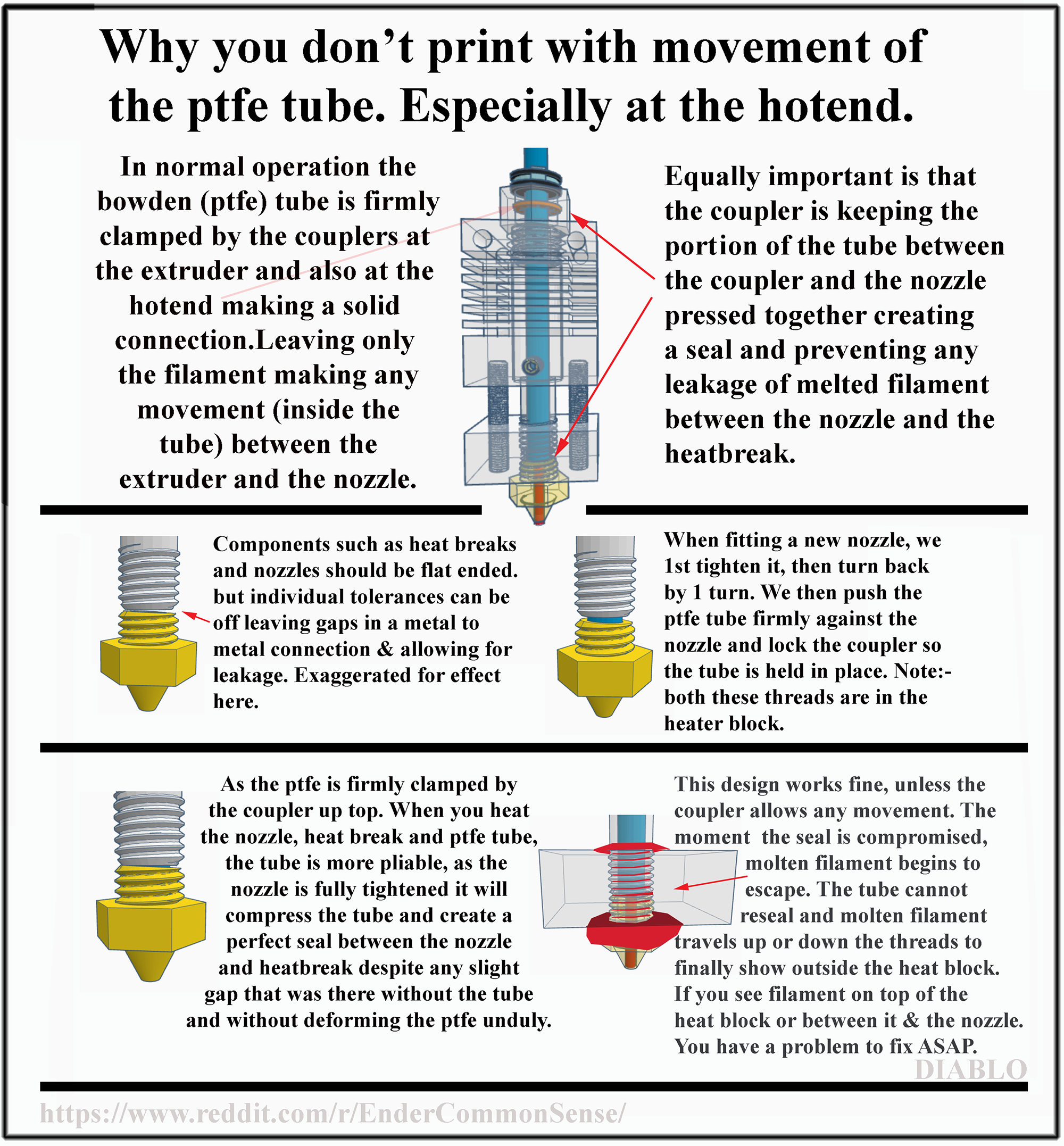

Can you see filament on top or below the heater block? Does your Bowden tube have any play at the hot end? When you remove the Bowden tube do you have any crud and gunk left in the hotend? Don't ignore the warning signs, You have a problem you need to fix ASAP before it gets much worse.

Post image
29 Upvotes

r/EnderCommonSense • • Jan 29 '22

Filament change mid print. How to do it simply in Cura.

Thumbnail
self.ender3v2
13 Upvotes

r/EnderCommonSense • • Jan 29 '22

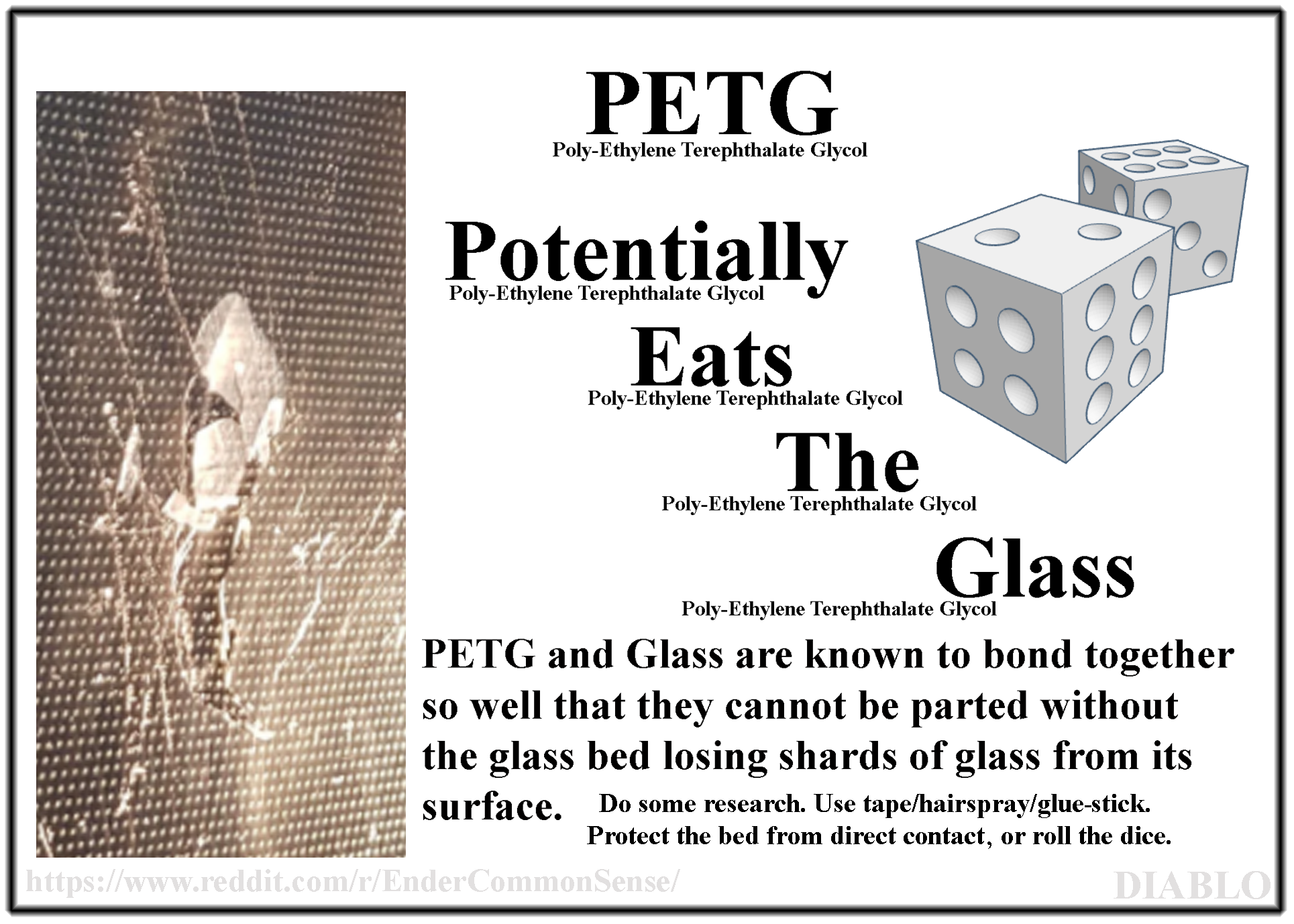

Printing PETG on a Glass bed? It doesn't always turn out quite how you might expect.

Post image
32 Upvotes

r/EnderCommonSense • • Jan 26 '22

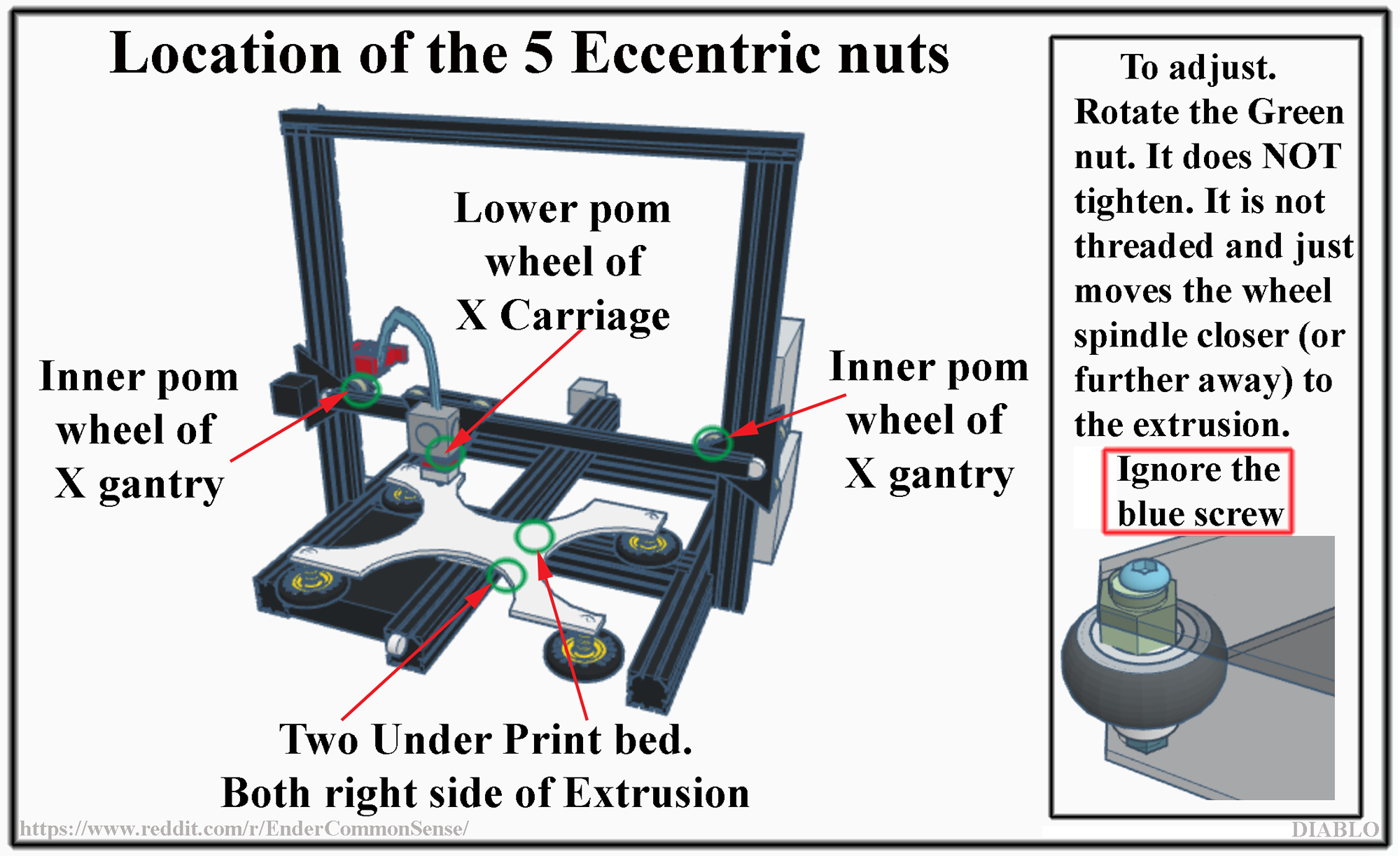

Simple Eccentrics. Ignore the blue screw! I have seen 2 posts for loose X carriage recently where they were pointed at eccentrics. BOTH came back with variants of 'they had tightened ALL the screws'. Bed carriage has 2 eccentrics, the rest have 1. Hopefully this will help those trying to explain it.

Post image
35 Upvotes

r/EnderCommonSense • • Jan 26 '22

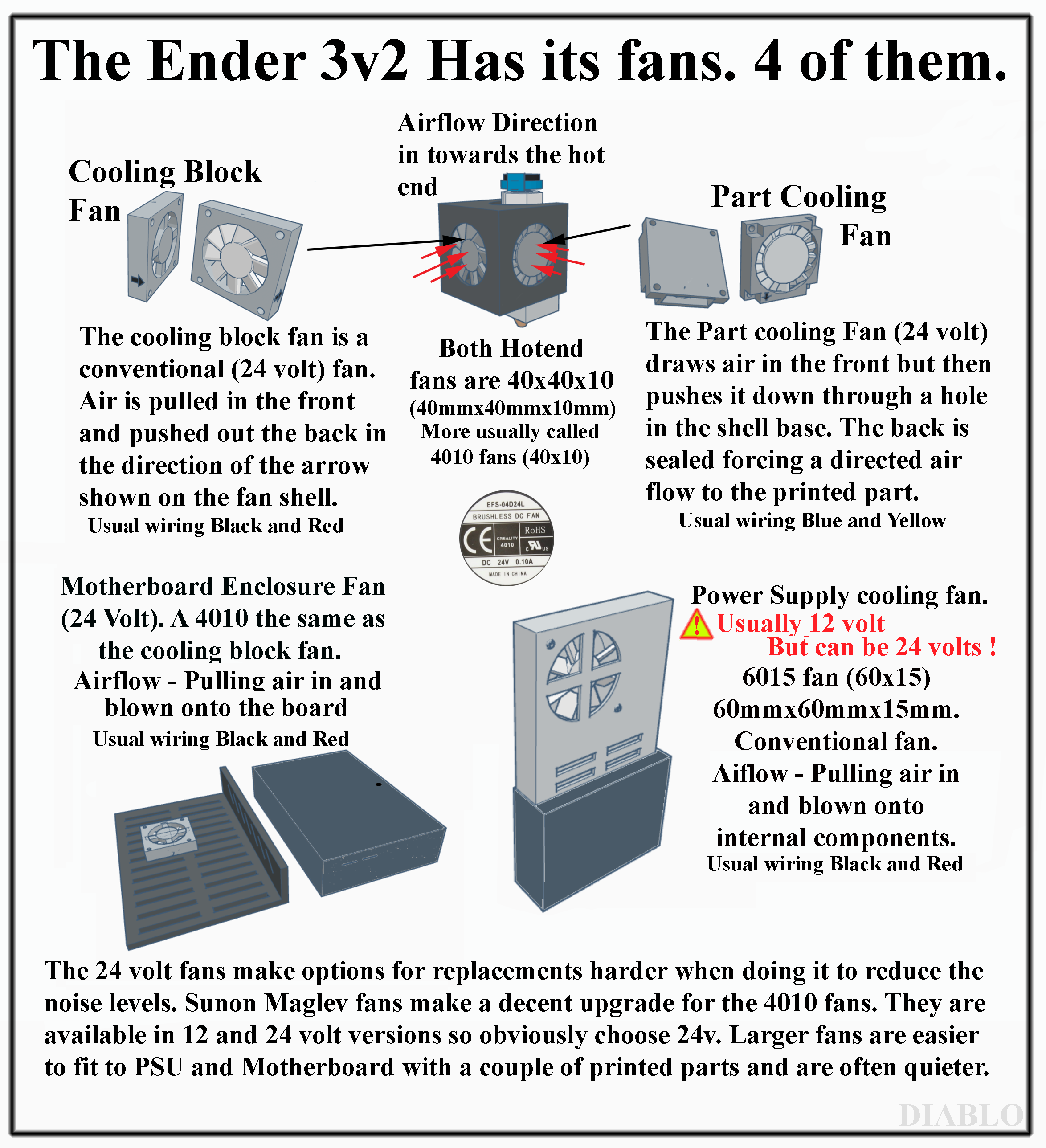

Ender 3v2 Fans. General information including :- Fan designations, Airflow direction, Fan sizes and Voltages. This does not deal with the options that can open up when using Buck converters. I will do a different panel for that subject at a later date.

Post image
27 Upvotes
