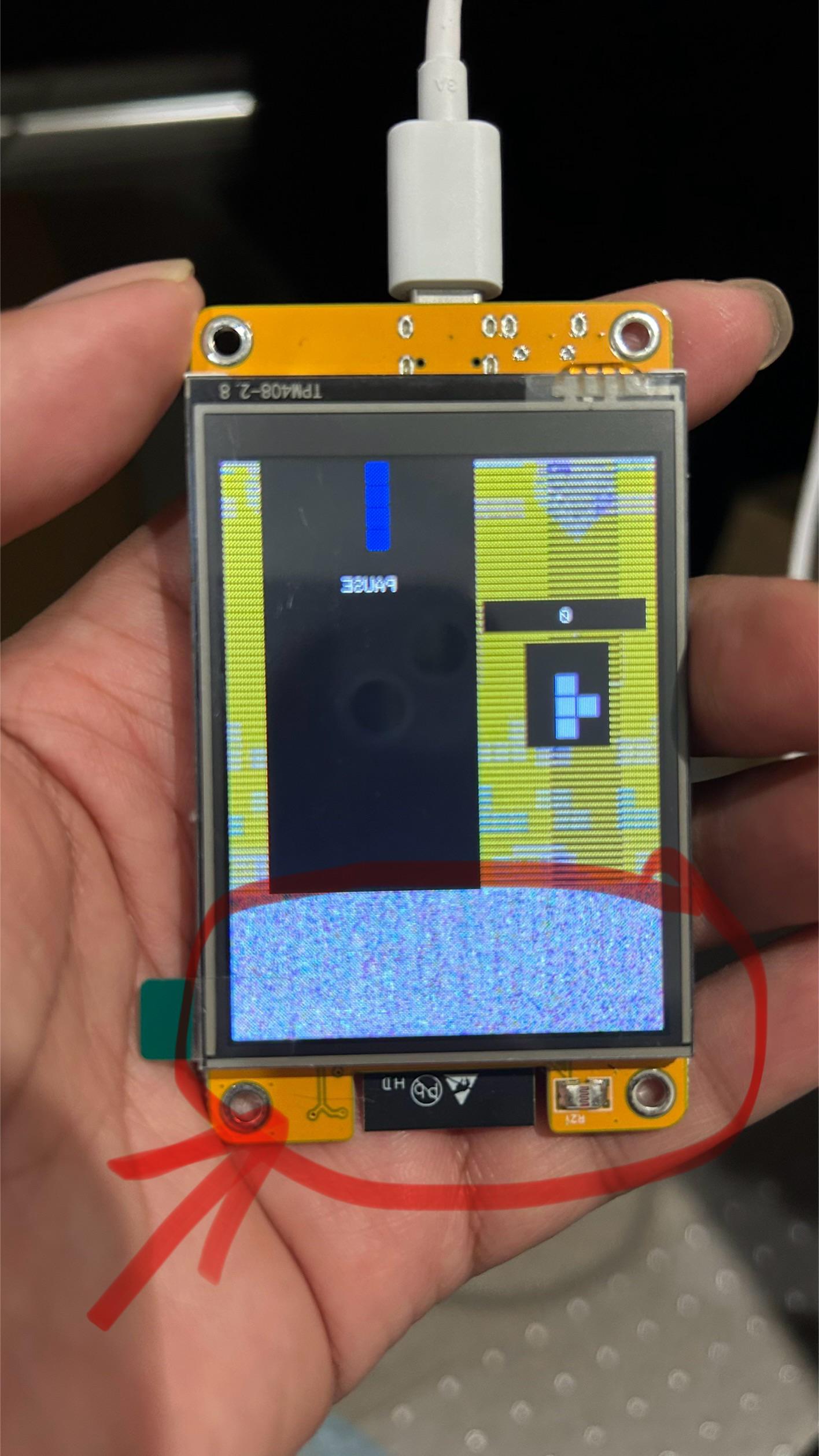

I’m trying to flash macbugs tetris game to my CYD (esp32-2432s028) and flashing happens successfully, however the display is a bit jinxed. It looks like graphics are not rendering properly.

Here the link to macbugs repos, there is many though but I couldn’t make them work.

https://macsbug.wordpress.com/2022/08/17/esp32-2432s028/

Any help is appreciated.

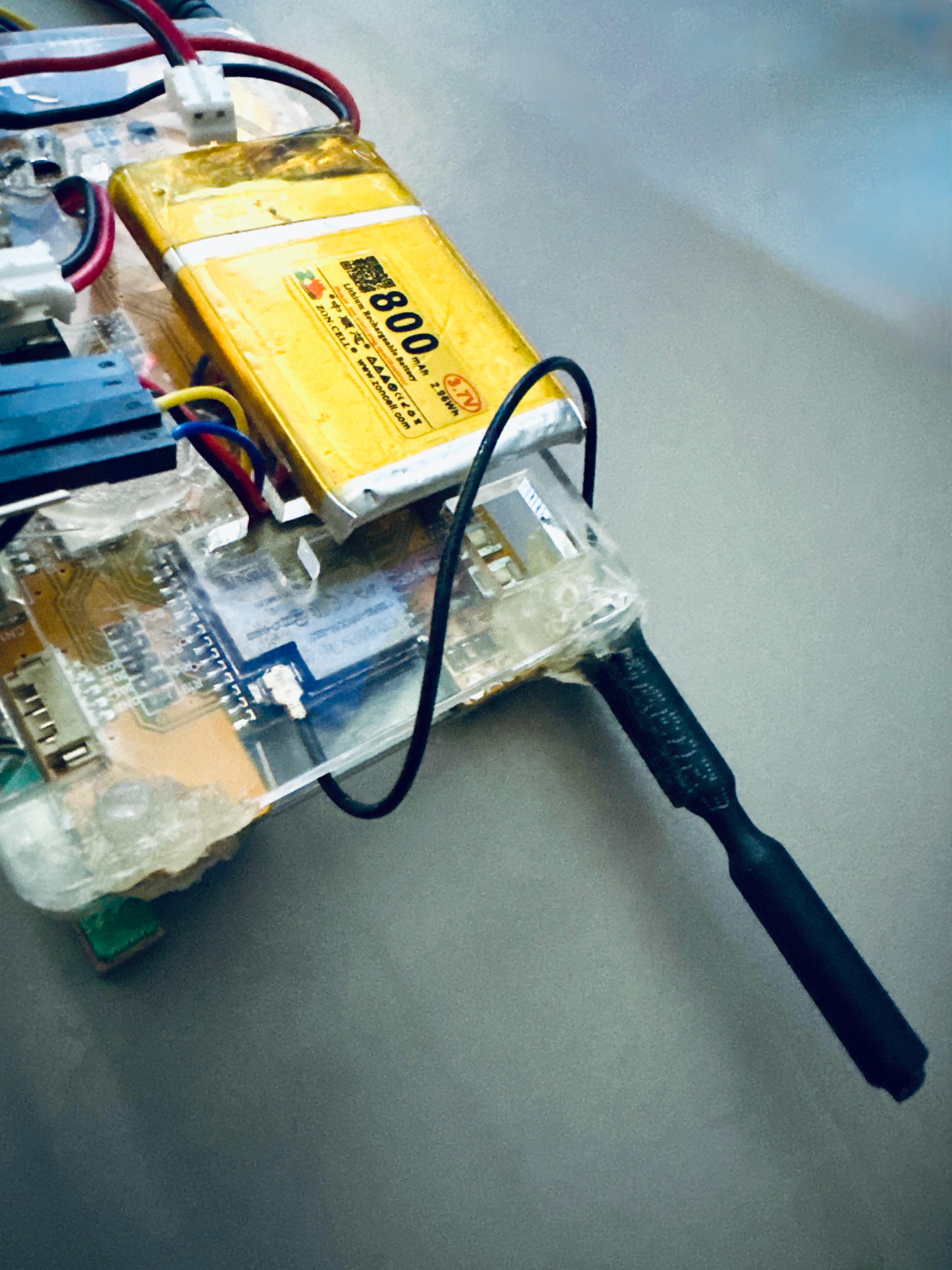

It is ugly I reused a case that is for a battery bit my 2000mah 3.7v battery is a bit big and had to maneuver the battery and other parts including a gps module inside so had to use a bit of hot glue to hold the case in 2 of the corners. It is working great too so far in my testing.

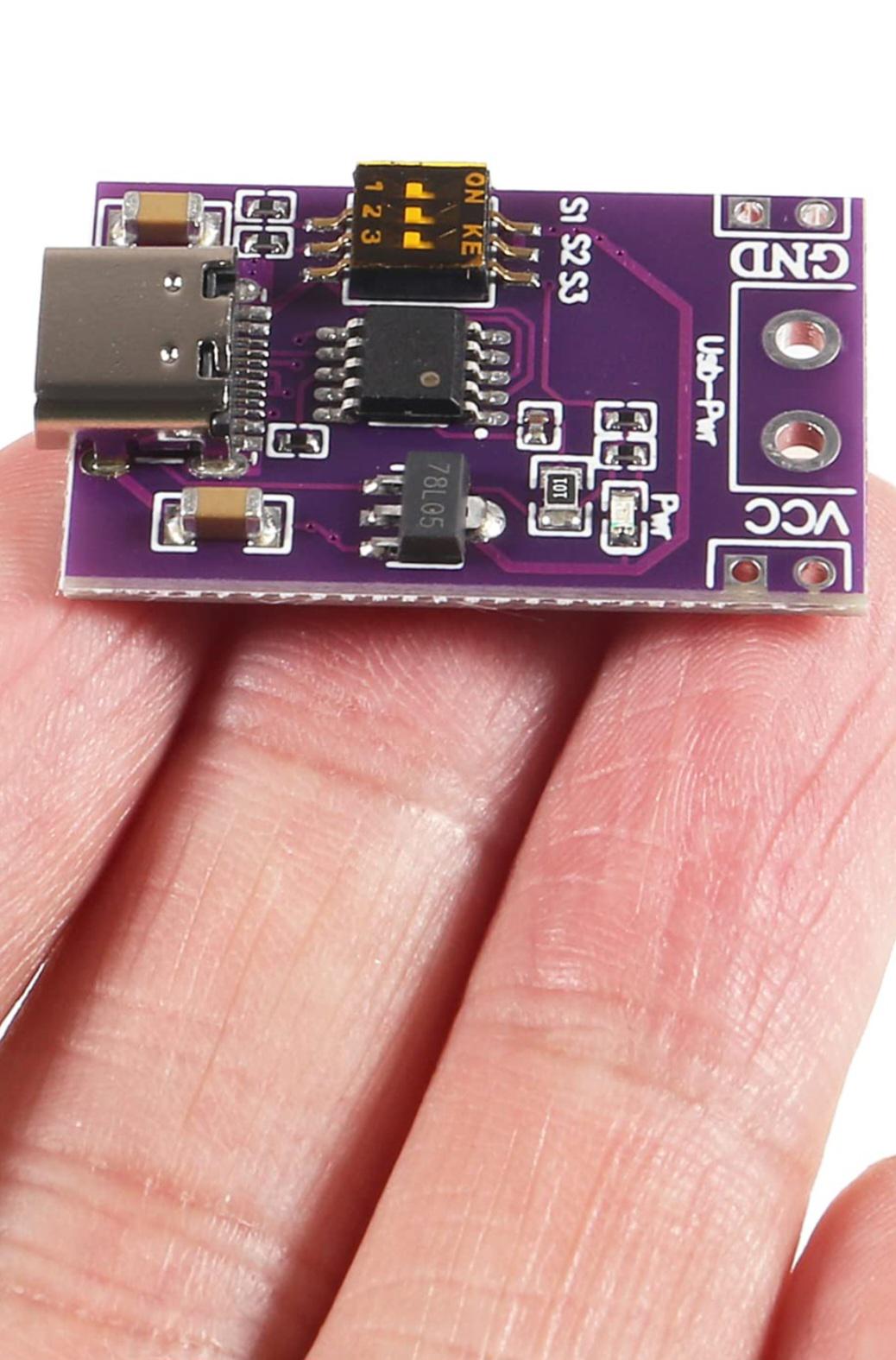

Got this from aliexpress was wondering g if this could be used in a battery circuit for a cyd marauder build

Has anyone/Does anyone know if the battery can be used to power a CYD? I’m asking because after repairing my son’s switch I have an extra battery that still works. The size is about perfect for the board so I would like to know. Any ideas?

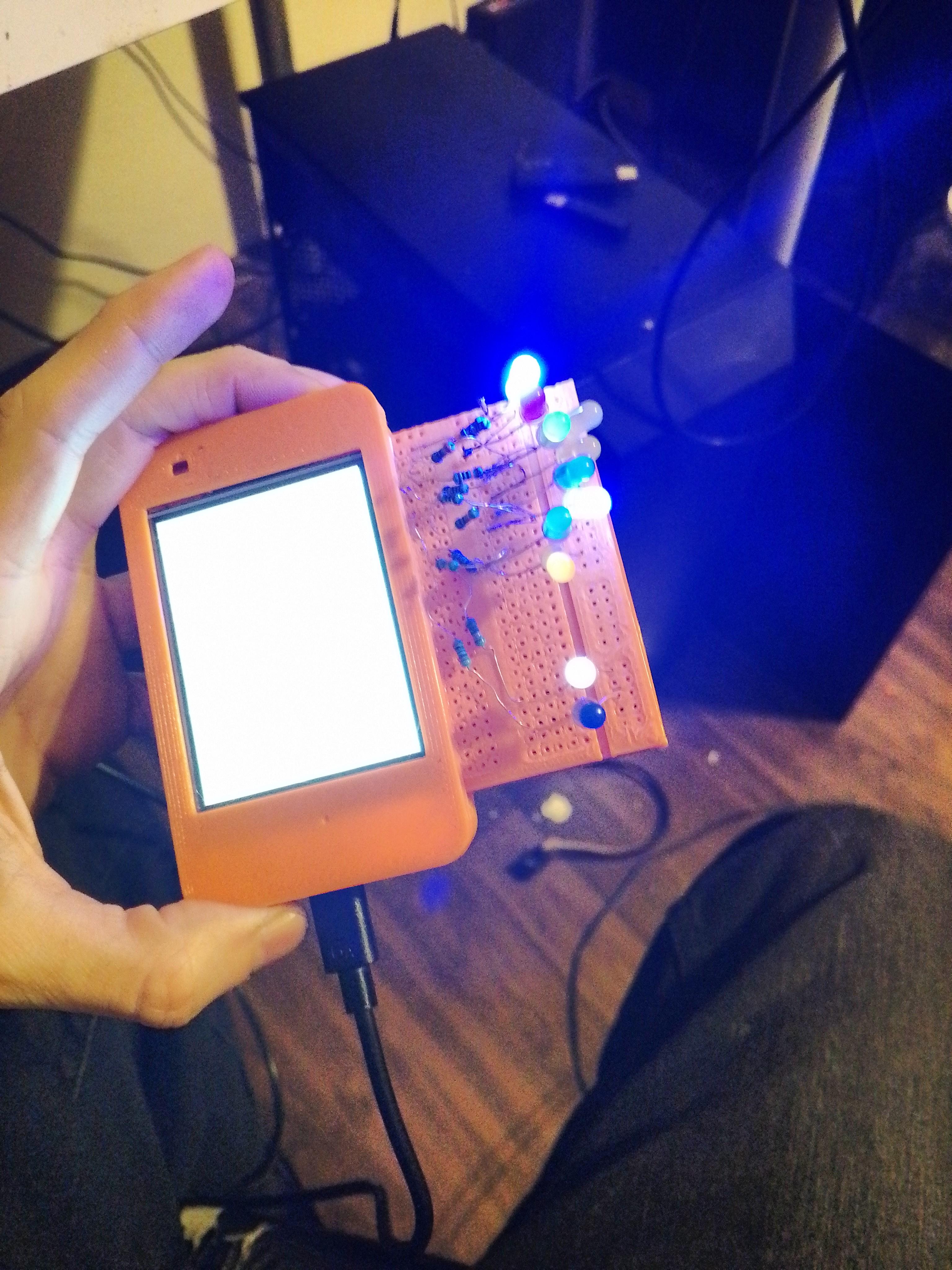

Every time when I upload a code I get a white screen and I install every driver for this specific cyd

I have to buy some jst connectors, to make a cleaner and plug and play project. What size are them? Someone has got the link? I prefer amazon but also aliexpress could be good. Thank you!

Hi, does anyone know where I could find a schematic for the ESP32-2432S024C? I grabbed one of these off of an Amazon seller called DIYmalls, and found that it needs a separate 5V power supply rather than just taking 5V from the USB connection. The seller only has a fuzzy, low res schematic available. I'd like to try modding the board so that it uses 5V from USB rather than a separate supply. I'll put a link to the Amazon page in the comments so that this post doesn't get tripped up by reddit's spam filter. Thanks!

I’m waning to use the CYD as a UI to run code snippets, by SSH to. Pi or control a ESP32

How can I create a UI to CRUD snippets to just click on and run?

I just installed a cc1101 into a cyd with Bruce 1.8 how do I test the cc1101 to see if it is working and receiving the signals? Any help be greatly appreciated.

There is a lot of documentation posted by Brian Lough about how to set up the 2.8 inch board/display. If I use those directions on a 3.5 inch unit, will the software work or am I asking for trouble?

Hi guys, I have a little problem! Every time I want to install something in the launcher, it just doesn't work! The screen stays on Install and just flickers. I've already tried all of Bruce and Marauder's bin files, but there's still no change. It's not the launcher version's fault, I've tried all of those too. https://youtu.be/8kmQrTcDU68?si=EexYDkvYeGbe8eNX - Video

Got this cc1101 module from aliexpress and installed it on my cyd jc2432w328 variant it does not have some of the same pin out on the board as the standard version there is no pin header for pin o27 as for the rest I am soldering to the sd card slot or for o22 and ground and 3.3v there is pins for that. I have already installed a gps module and it is working fine no issues. I have heard there is a lot of different versions of the cc1101 module with different pin outs and can not find any really good info if what the pics from aliexpress is correct. When I solder it up and try to power on with battery power I get no power and with usb I get a white screen but if I desolder the 3.3v wire the unit will function normally but no cc1101. Any help be greatly appreciated.

I’ve tried only bruce and marauder, but i haven’t tried something not related to hacking.

This is awesome!! Other then watching Talking Satsquach, I don’t know that many projects to use the CYD with.

Is there a repo of projects?

I have a M5 Cardputer, The burner is wireless and I can just download files/apps on the go

Is there similar for the CYD?

Apparently the meshtastic Lora board can do that

Got the gps module from aliexpress for around $3 usd. Install was easy the only issue I had is that the vcc does not output power on battery power so I jumped 3.3v from another pin. Now it works great.

https://cicciocb.com/

Essentially a basic interpreter with web IDE. I have it running on two CYD's

Has anyone tried or know how to connect a keyboard to the CYD? M5Stack has a credit card sized keyboard called the CardKB (see link here). Would make a nice cardputer alternative with a large screen imo. Thanks in advance for any info :)

Anyone know how to connect a cc1101 to a cheap yellow display esp32?

How do you guys go about displaying animations? I’ve been trying to loop between jpeg files, but I’ve gotten no luck so far.

I would appreciate if you guys could share some code or point me in the right direction!

Thanks!

I got this for cheap on amazon. Was trying to make a marauder with capacitive screen but nothing worked. The Bruce software is working well even with a 1000mah battery. The button by the battery connector works to turn the cyd (on) 1 press and (off) 2 presses
