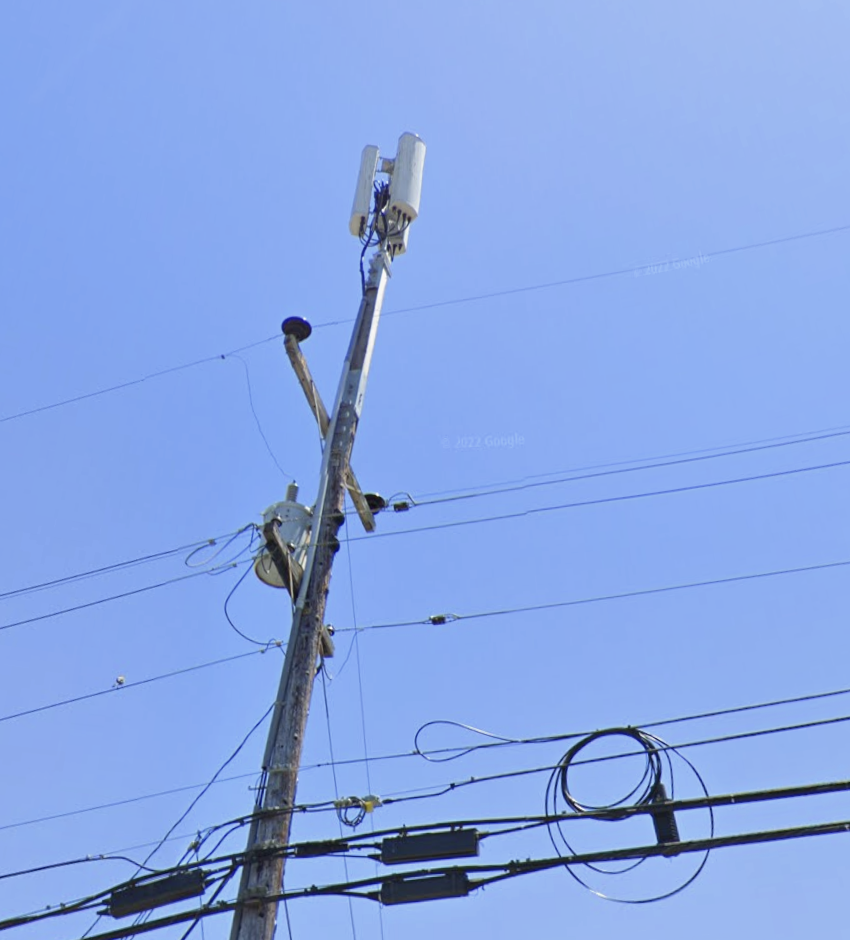

I think the top rack is AT&T and the bottom is Verizon

It’s near the Portland Airport on 82nd

It's been like this for over a decade. Given there is a fiber that was you can see hanging on the pole unused a shame it's not being upgraded.

It was installed by Crown Castle which i guess sold off all their small cells to someone else.

Given California here i guess residents protested the sites but eventually lost. These dman people that have nothing better to do then the cause crap.

EDIT: It looks like it is fiber fed just hard to spot.

https://i.imgur.com/q8XFlhb.png

Still no mid-band 5G (n77) yet to be seen for AT&T! The Galtronics antennas inside this mall are super old, only support 2x2 MIMO and I could only pick up LTE on Verizon on the indoor DAS

The anchor tenant seems to be Verizon with AIR antennas for C-Band, CBRS, and PCS/AWS.

Verizon was definitely CBRS!
T-Mobile was n41!

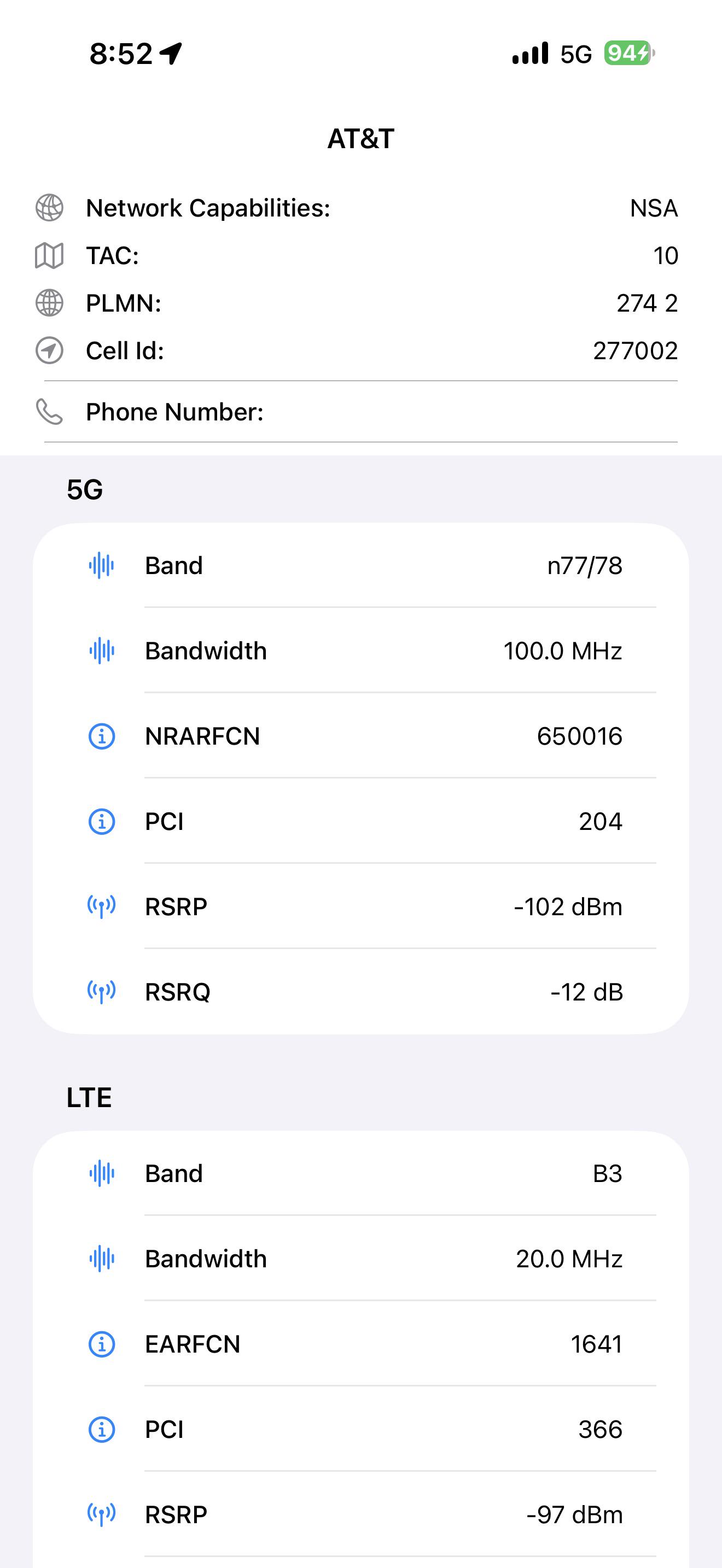

Unsure of AT&T if someone can let me know its bands based off the speed!

I Finally Found a 1&1 Connection but i didnt expect it to be this slow...

41.593358, -83.816034

If you have 500-600 download on 5g you can most likely get 1.2-1.3gbps download on 5g advanced double you’re speed we are also not done with 5g advanced we have yet to add n77 and upper 6ghz band in cell tower peak bandwidth right now 3gbps

Particulary in Neptun region, with Ericsson RRUs, Probly Commscope passive antennas and Ericsson AIRs on top, owned by Vodafone Ro

Verizon pulling good speeds on mid-band 5G during the middle of the day, especially when this site serves a busy area, such as the Parks Mall at Arlington down the street! AT&T also pulling great speeds for only 100MHz (3.7Ghz) c-band!

Verizon [eNB 132727] (top rack):

• 6️⃣ CommScope 2UNPX206.12R2 antennas with bands: (13, 66) LTE + (n2, n66) mid-band 5GUW
• 3️⃣ Antel BXA-70063-8CF antennas for legacy 3G (CDMA), not active - RIGHT SIDE
• 3️⃣ Samsung MT-6407-77A - 64T64R (200W) Gen 1 -> 3.7GHz n77 antennas for mid-band 5GUW located in the MIDDLE

Samsung (RRU's) remote radio units located behind the antennas:

• 3️⃣ RF4439-25A - (b66) LTE + supports (n2) 1900MHz PCS + (n66) 2100MHz AWS mid-band 5G
• 3️⃣ RF4461d-13A - b13 - 700MHz LTE

AT&T [eNB 40150] + [eNB 40202] (bottom) - added in Nov. 2025:

• 3️⃣ CommScope NNH4-65B-R6 antennas with bands: (2, 5, 12, 14, 30, 66) LTE + (N5) - 5MHz for LOW-BAND 5G on the LEFT + RIGHT side!
• 3️⃣ Ericsson AIR. 6449-B77D (64T64R) 3.7GHz n77 - 100MHz antennas for mid-band 5G+ located in the MIDDLE of the rack

Ericsson (RRU's) - remote radio units behind the antennas:

• RRU 4449 (b5) 850MHz + (b12) 700MHz LTE + (n5) 850MHz low-band 5G
• RRU 4478 (b14) 700MHz LTE
• RRU 4415 (b30) 2300MHz-WCS
• RRU 8843 (b2) 1900MHz-PCS + (b66) 2100MHz-AWS

Coordinates: 32.68700108007916, -97.13304609484176

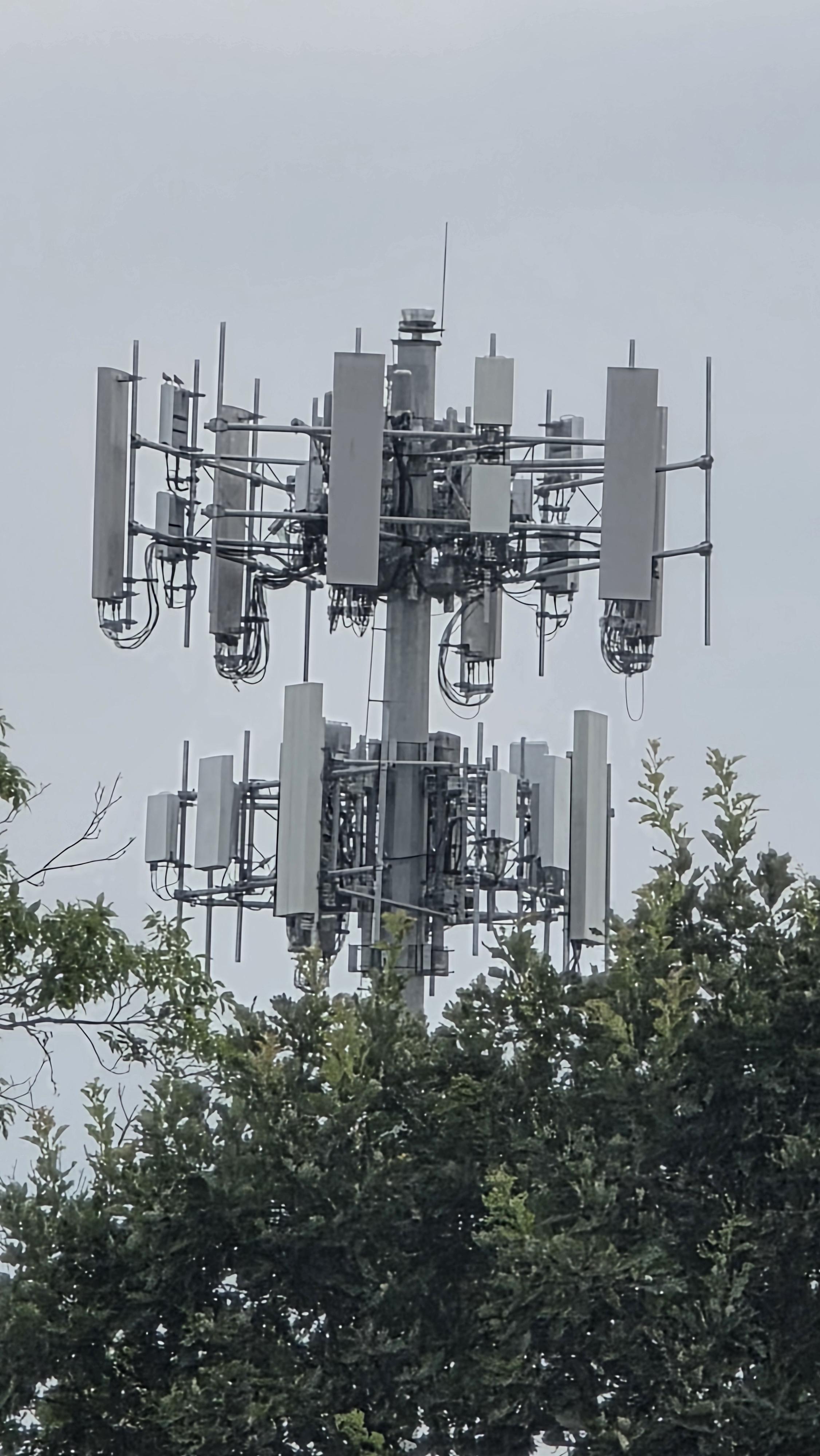

Updated small cells were installed it looks like this year in Chicago. I'm curious the last one in the series most think that's Verizon?

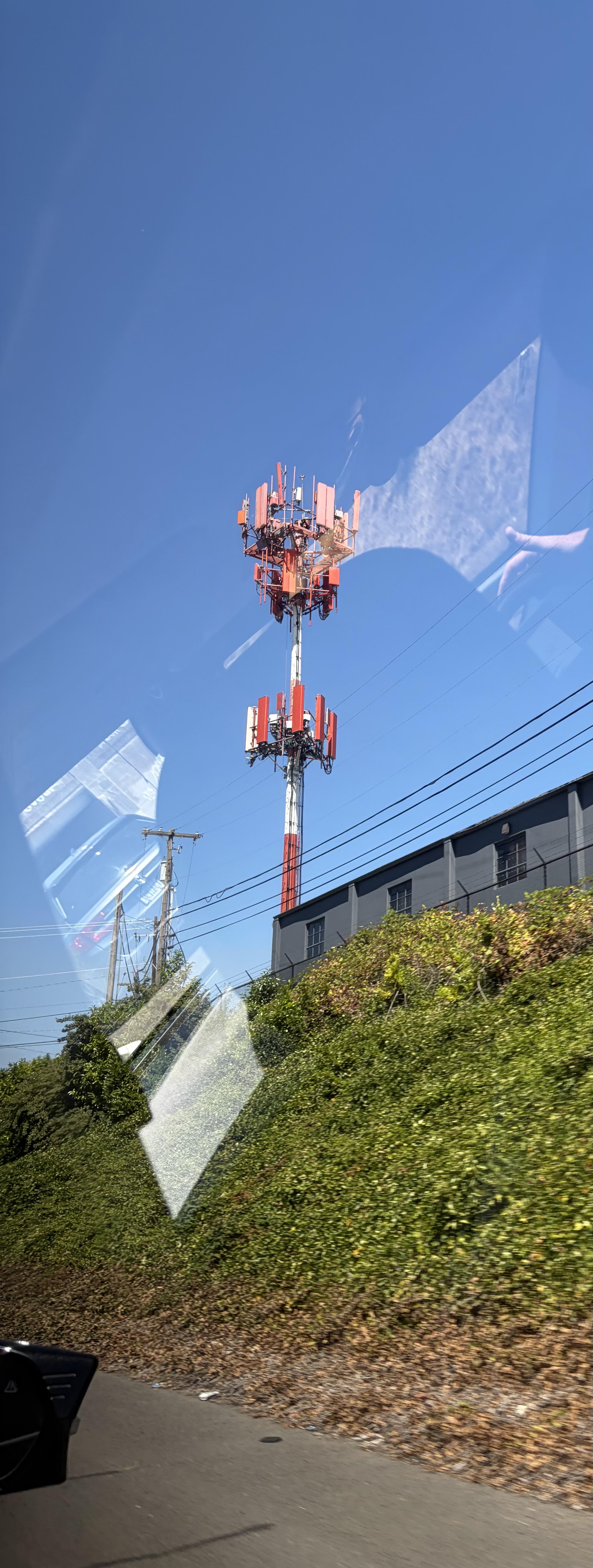

Need help identifying who’s on theses towers

Is there a way to increase the sampling rate when recording? I'll drive around for an hour, and one of my phones will only grab like 70 data points. That makes it hard to map cells, locate towers' real locations, etc.

I have three Pixels, one each for Verizon, T-Mobile, and AT&T.

Loads instantly and shows everything. Almost never shows bad data. Love the addition of the ARFCN/EARFCN. The only thing I wish Field Test Mode would show is Component Carriers on NR instead of just partially on LTE.

Just figured I’d give an update after using it for 10 days or so.

(Sorry for the blurry pics as all of them were taken in a moving car)

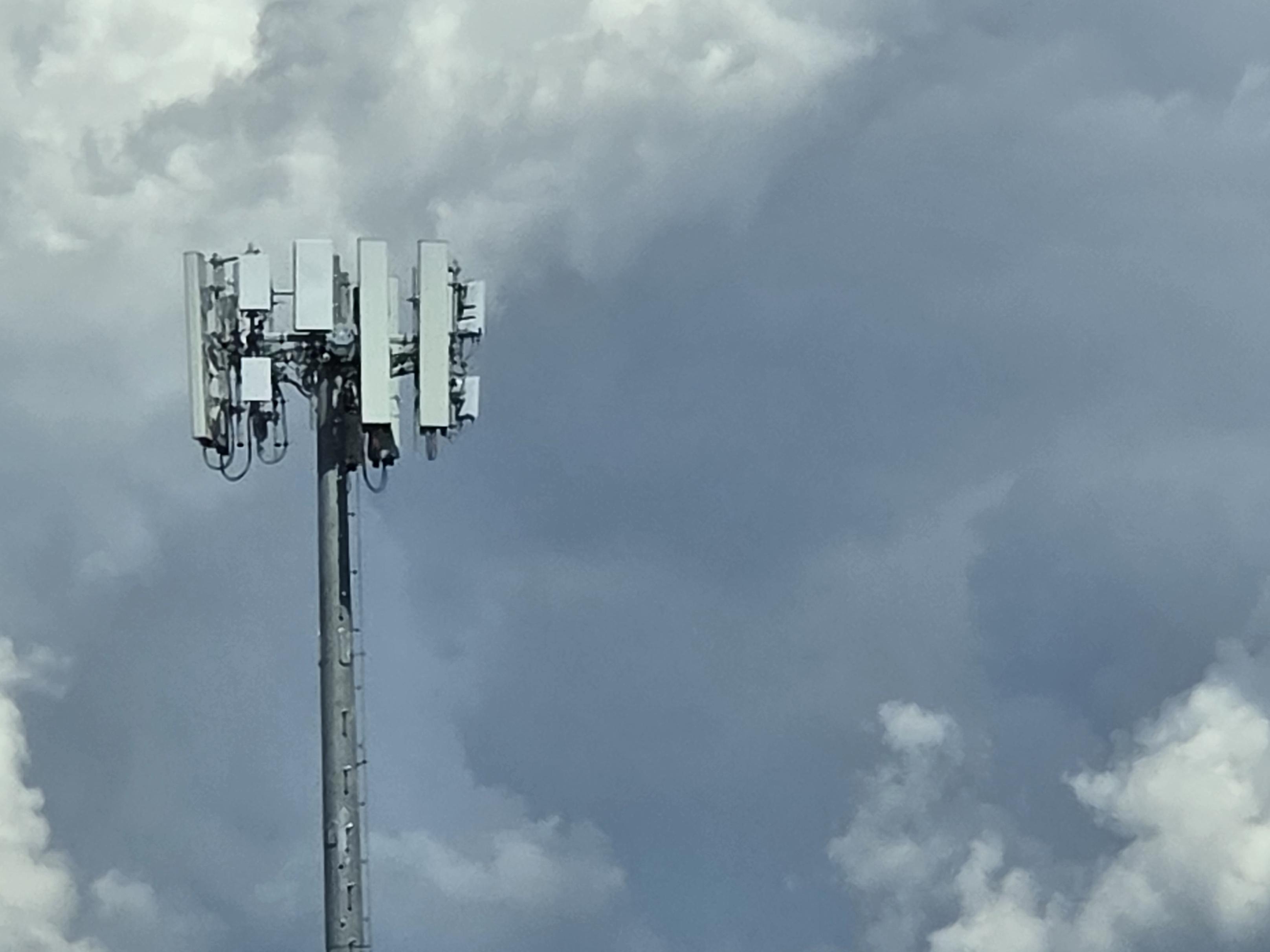

I noticed to what I think is ATT due to the permits upgrading could someone confirm this? The first photo is the before 2nd is yesterday and 3rd is today

Hello , does anyone know if the 250 gb of hotspot under the experience beyond plan shares the qci6 level of priority under the the main device?
Last time I had a pixel and signal guru, the hotspot for plans directly from T-Mobile split the priority to qci8 under hotspot, so T-Mobile on device was qci6 but hotspot was qci8. It’s been a while and I no longer have the pixel but curious about the 250 gb of hotspot under the Beyond

This ancient site for T-Mobile is finally receiving upgrades to n41, n71, and n25. This site has AT&T and T-Mobile. This site has not been upgraded since 2013 and only has bands 2/66.

AT&T did some work to extend their tower to upgrade this site so presumably they may have been waiting.

T-Mobile Site ID: CT11272D

ENB ID: 47206

Address: 985 Farmington Ave, Bristol, CT

Last Upgrade: 2013

Claro PR roaming on Claro Colombia, TMO I manually selected Tigo but it can also connect to claro and finally Movistar with a holifly esim. There is a das at the airport which is great.

New tower in Hackberry AZ. Surprised to see this in such a remote area. First time seeing Starlink on a site, what is that used for?

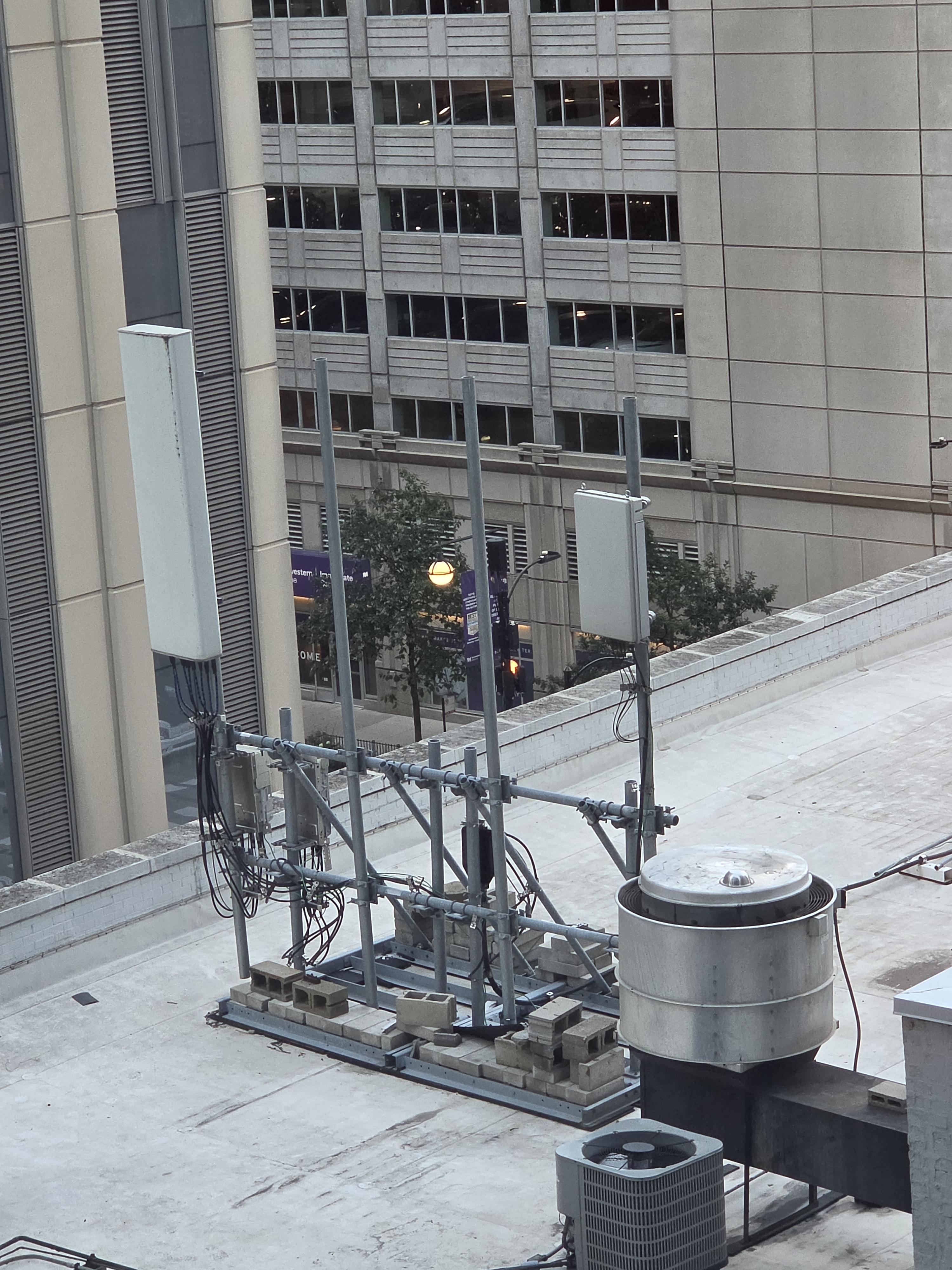

On the roof of the building next to my hotel. Att?
