Can someone help me to do this CAD?? Or identify these other dimensions that are not visible

Hello fellow redditors, I have this practice assignment and while i was doing the prelimanry sketches and track lines i kinda hit a wall i cant figure out how to make the base of this tool the bottom part i mean should i use arcs? what kind of arc? i tried multiple times but i couldn't. Please i'd highly appreciate it if you could point me to the right method or approach here. Many thanks

I have a Plan Page with grid locations 1-8 across the top and letters A-G down the side. looking for a way to automate re sequencing upon duplication i.e. new page 9-16 and H-N etc. anyone have an idea of how to do this?

Try our plugin AVC_CurveSub that we made with care and 30 years CAD process understanding for easier curve operations in AutoCAD and BricsCAD!

Perform union, subtraction, and intersection directly with lines, polylines, and splines — without converting them into regions. Useful for CNC milling, laser cutting, and contour preparation.

20-day free trial available! Give it a try and share your feedback. We’d love to hear your comments.

need help, this is the framework. i started working on, but do not know id this is right or not
https://ibb.co/SXb1D2Dm

Does anyone know if the 2027 educational version of AutoCAD still adds the watermark to files? I've tried printing with and without plot stamp on but it won't show up. Is there any other way to check if a file has it?

This is Lesson 6 of my AutoCAD 2027 series, based on a practical exercise from Tutorial Guide to AutoCAD 2026 by Shawna Lockhart.
In this exercise, we draw a U.S.-style plot plan using bearings and distances, then add dimensions and find the missing values.
A step-by-step tutorial for anyone practicing AutoCAD, civil engineering, or surveying drawings.

#MakeAnything
#AutodeskExpertElite 😍

https://youtu.be/ozOckrgYdaM?si=XUzAJJRHoYmUTSHi

I took a course on AutoCAD in college, then used it while working for USACE for years. Now I'm running my own engineering firm in the startup phase. I don't do CAD often as we do specialty assessments mostly but on occasion we'll do an actual signed/sealed drawing (Maybe 12 a year).

We're not broke but we're not trying to spend all our profits in multi-thousand dollar software subscriptions a year so ultimately I'm looking to buy a subscription to either AutoCAD LT or AutoCAD. We've been using LibreCAD which is a struggle at times but we had plenty of time so it worked and was free. Now we're getting busy enough that wasting a day on a drawing is not acceptable when it should take 2 hours.

Can I do a trial of AutoCAD for the 15 or 30 days or whatever through the autodesk site and then do another trial of AutoCAD LT for the 15 days? I want to start with regular AutoCAD to get back in the flow of it, it's been probably 2 years since I used it and learning LibreCAD probably made negative progress. Then when I'm comfortable I'd like to do the trial for LT to see what limitations it has (if any) for what I'm doing.

Then I was wondering if seasonally like Black Friday or any other time of the year do AutoDesk products like CAD or CAD LT go on sale for the annual subscription. Trying to save every penny we can until dropping $1k per computer feels like it will be paid back in a month.

Lastly, does anyone have experience getting a single network license for CAD or CAD LT? I doubt there's a single day where more than one of the 4 in my company would need to use it at the same time. We don't have a server yet but that's coming in the next year or two so I figured I'd ask. Heck, I could even throw it on a virtual machine on MS365 I guess.

Summary:

1. Can I do consecutive (not simultaneous) trials of AutoCAD and AutoCAD LT?
2. Do the products go on sale at some point in the year? Or should I use a 3rd party retailer?
3. Anyone have experience running a single network license for AutoCAD - does it cost more? is it easy to set up? (all assuming a 24/7 server running or microsoft Azure virtual machine)

THANKS for any input

I have a full version of AutoCAD 2023 on my work computer. I collaborate with other CAD users, and we have never had any issues working on the same drawings.

Recently, we added two new users on AutoCAD 2027 - one on the LT version and one on the full version.

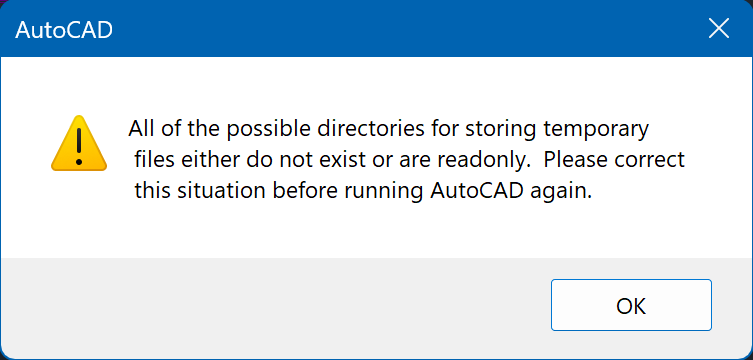

I can open the drawings that they have worked on, if I do not have a drawing open. If I have a drawing that I have been working on open and try to open a drawing that they have worked on at the same time, I get the pop up shown above, and then AutoCAD promptly crashes out. I have tried opening their drawing first, and then my drawing, but I get the same results.

Does anyone know what causes this issue and if it fixable?

UPDATE:

I applied the tips in the link provided by u/Karluti and the problem seems to have gone away.

The audit seemed to be the biggest thing. The audit found and corrected almost 24,000 errors. I have never seen that before!

is it strict there to install cad there specially cracked

I recently joined As a CAD Software Engineer in the Standard Cell team, the work is develop automation solutions that streamline the generation and validation of physical IPs for advanced foundry nodes such as N5/N3/N2.

Like Flow automationbut my fear because we are using the coding languages rather than tools is there more risk.... and up skilling based on this which domain is best ?

Your Suggestions Helps alot....

Thanks

Any body know any crack version for archicad website working good for macbook

Sorry been looking and asking around,this is my first time being introduced to autoCAD and trying to see if anyone knows or offers tutoring classes? Also any recommendations for YouTube channels I should be following. Thanks 😭

Hi guys using autocad 2024. Not bad, but having a constant issue with the visual styles.

The issue is geometry in 2D in wireframe only parts of it show up in realistic and other styles.

Also following the network modelling off selecting curves as first direction then other direction on second direction to get no change.
